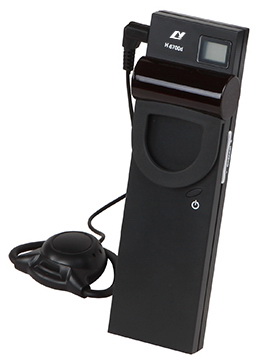

H-6700D Digital IR Receiver
◆ Packet size wireless handheld unit
◆ Accommodates up to 32 different languages
◆ Channel selector and headphone connector
◆ Power on/off switch and volume level control
◆ Powered by (2xAA) rechargeable batteries
◆ Aluminum carrying cases provided for recivers
◆ 2-digit LCD display with battery and reception status indication
◆ Compatible with Bosch system
-
Technical Parameter
|
Item |
Parameter |
|
Receiving sensitivity |
-101dBM |
|
Angle of half sensitivity |
± 50° |
|
Headphone output level at 2.4V |
450 mVrms (Speech at maximum volume, 32 ohm headphone) |
|
Headphone output frequency range |
20 Hz to 10 kHz |
|
Headphone output impedance |
32 ohm |
|
Max. signal-to-noise ratio |
78 dB(A) |
|
Supply voltage |
1.8 to 3.6 V, nominal 2.4 V |
|
Power consumption at 2.4V (battery voltage) |
60 mA (speech at maximum volume, 32 ohm headphone) |
|
Power consumption (standby) |
60 mA |
|
Dimensions |
157×49×25mm |
|
Operating temperature range |
0-40 degree |
|
N.W |
150g without battery |
