Product detail

Home » Microphone & Megaphone » Wireless Microphone

 Checkout
Product ID: H-860

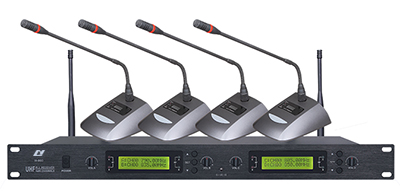

UHF Wireless Meeting Microphone
UHF Wireless Meeting Microphone
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

    ◆ Adopt UHF 550-980MHz PLL frequency synthesizer technology, adjustable transmitter frequency and power
    ◆ Adopt multi-channel high band and intermediate band frequency selective filtering, fully eliminate interference signal
    ◆ Built-in feedback eliminating technology which can decrease the feedback and noise effectively
    ◆ Built-in multiple noise detecting circuit and TONE-LOCK system to make sure the system has strong anti-jamming function
    ◆ Perfect performance with the best chips and components, adopt SMD original mount design, enhance the product quality and stability
    ◆ Automatic scanning and selecting the frequency, easy for installation and using
    ◆ Operation distance up to 100 meters with the best condition, 50 meters in normal condition
    ◆ The system includes 1 receiver and 4 transmitter microphones

  • Wireless Microphone System Parameter:

     Operating Frequency:  550-980MHz (CPU controlled)
     Frequency Stability:  <±10PPM
     Audio Dynamic Range:  >105dB
     T.H.D:  <0.5%
     Freqency Response:  50Hz-18KHz
     Audio Output:  0-600mV (balanced);
     0-300mV (unbalanced)
     Tone Frequency:  32KHz-51.2KHz
     Transmitter Distance:  50M~100M
     PLL combined technology:
     4 group system frequency, each group 60 points selection, totally 4*60=240 frequency points sharing



  • Wireless Receiver Parameter (Main Unit):

     Operating Frequency:  550-980MHz (CPU controlled, adjustable)
     Power Supply:  AC110V-230V, 50Hz~60Hz
     DC Power Input:  DC12V 1200mA
     Power Consumption:  8W
     S/N Ratio:  >105dB
     T.H.D:  <0.5%
     Frequencey Response:  50Hz-18KHz



  • Wireless Transmitter Parameter (Microphone Unit):

    Operating Frequency: 550-980MHz (CPU controlled, adjustable)
    Transmitter Power: High: 10dBm;
    Low: 5dBm
    Input audio source: MIC in / Line in
    Modulation Type: FM
    Max Modulation: ±45KHz
    Power: 3V (2x AA 1.5V batteries or 1.2V-1800mAh rechargeable batteries)
    Working Time: 8 hours



  • Opinional Transmitter:










Product Reviews

No Reviews For This Product.

Click to review this product
