Product ID: H-88B

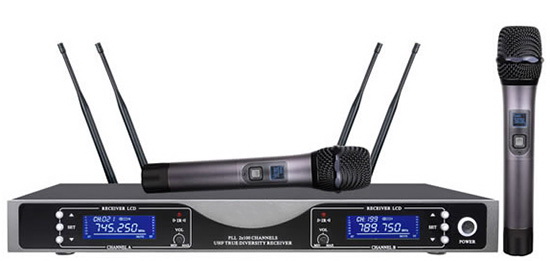

UHF True Diversity Wireless Microphone
UHF True Diversity Wireless Microphone
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Descripion:

    ◆ 2 Channel diversity receiver wireless microphone system
    ◆ 200 programmed, compatible UHF frequencies within the bandwith in 250KHz frequency steps
    ◆ Scan and ACT (automatic channel targeting) function for easy location of free frequencies at the process of a button, easy transmission to transmitter by infrared diode per channel
    ◆ Channel selection, setting and control is performed with a user-friendly, front-mounted jog wheel and multicolor LED display that can be ready from a wide range of angles with displays for AF level, reception quality, remainingbattery capacity, frequency, group and channel
    ◆ Inhibit function to protect against unintentional maladjustment

  • System Specification:

    Workding Frequency: UHF 740MHz~789.75MHz
    UHF 610MHz~659.75MHz
     Modulation:  FM
     Frequency Channel:  200
     Switching Bandwidth:  250KHz
     Dynamic Range:  >100dB
     S/N Ratio:  >105dB
     T.H.D.:  ≤0.5%
     Frequency stability:  ±0.005%
     Max Deviation:  45KHz
     Frequency Response:  80Hz-18KHz(±3)
  • Receiver Parameter:

     Function Principle:  True-Diversity-Receiver (UHF)
     Medium Frequency:  110MHz, 107MHz
     Antenna Connection:  4xBNC
     Sensitivity:  12dBuV
     Sensitivity Adjustment Range  12~32dBuV
     Noise Rejection:  >75dB
     Max Output Level:  +10dBV
  • Transmitter Parameter:

     Antenna:  Build-in
     RF Output:  <10mW
     Noise Rejection:  -60dB
     Transmission Range:  100m
     Power Supply:  2pcs AA batteries
     Battery Life:  10 hours in normal power; 12 hours in low power

  • Optional transmitter:
