Product ID: H-P200/H-P350/H-P450/H-P650

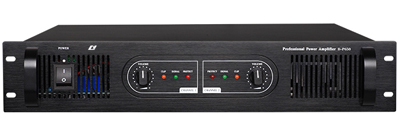

Professional Amplifier
Professional Amplifier
  • Description
  • Picture
  • Datasheet

  • Description

    2-channel, parallel or bridged, mono operating modes for flexible application
    Independent limiters for each channel offer dependable protection against distortion.
    Precise signal and clip LED indicators to monitor performance.
    High-current toroidal transformer for absolute reliability and lowest noise emission.
    Independent DC and thermal overheat protection on each channel automatically protects amplifier and speakers.
    "Back-to front" ventilation system including air filler will automatically adjust fan speed for smooth operation.
    Balanced XLR and 1/4″ TRS inputs.
    Professional connectors compatible to Speaker and "touch-proof" binding post loudspeaker outputs enable secure operation.

  • Specification

    Model H-P200 H-P350 H-P450 H-P650
    Power supply AC 220V 50~60Hz
    Input sensitivity/Impedance 500mV/20KΩ 500mV/20KΩ 500mV/22KΩ 500mV/20KΩ
    Output 2x200W 2x350W 2x450W 2x650W
    2x350W 2x550W 2x650W 2x850W
    Bridge 8Ω 600W 850W 1050W 1550W
    Frequency response 20Hz-20KHz
    S/N >90dB
    T.H.D. <0.05%
    Channel crosstalk <-70dB
    Channel impedance 4~16Ω
    Net weight 12Kg 13Kg 14Kg 19Kg
    Produce dimension (LxWxH)mm 430x430x125
    Color Black

back view

  • H-P200_H-P650.pdf
