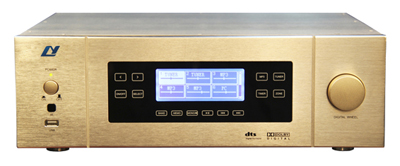

LY International Electronics Co., Ltd

Description:

◆ Build-in MP3 player, FM & AM digital tuner;
◆ Support external USB port, MP3 program input (flash disk, portable hard disk, MP3 player).

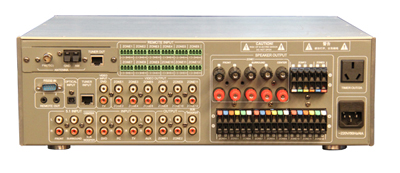

◆ Provide with DVD audio signal output port for zone 1 & 2, DVD/TV video input port and 12-zone video output port.
◆ Video switching function provided.The video is switched in synchronization with the audio input.
◆ A talk can be given between rooms.
◆ 12 independent zones outputs, each zone operate separately.
◆ The 1st zone is provided with 5.1 home theater output mode, fiber optical and analogue input mode. And the others are dual channel.
◆ Timer control function provided. The user may edit 100 timing points. With one week as a cysle, it is possible to execute timer control over the ON/OFF switching, audio source, volume, clock, AM/FM radio, MP3 play and output power ON/OFF for 12 zones.

◆ One AC220V power socket provided, with its switching state interlinked to the switch of zone. You may switch on any of the zones to switch on this power output. This power putput is switched off when all the zonesare switched off. Timer controll over its switching state is provided.
◆ Infrared learning function provided, so that it can learn the remote controller of any brand.
◆ RS232 remote controll port provided, so that the user may controll the functions of this device via central controll equipment.
◆ Inductive touch keys are designed for panel, with two controll modes available, i.e. local.

Specification:

Item	Index
Number of zones	12 zones
Number of zones	Zone 1 is of 5.1 channel, with 5 channels having PA and sw channel having line output. Zone 2-12 are of dual-channel.
Communication port for wired remote controller	RS475, Class 5 wires adopted
Cerntral control port	Type-D socket RS232
Line input sensitivity	250mV (+-25mV)
Line input resistance	>10k ohm
Zone output frequency	5 channels for zone 1: 60W/4 Ohm for each channel
	2 channels for zone 2 to zone 2: 60W/4 Ohm for each channel
	2 channels for zone 4-12: 20W/4 Ohm for each channel
	total power for all outputs not over 400W
Frequency response	20Hz-20KHz(+-0.5dB)
Taltal harmonic distortion	Less than 0.2%,1/3 rated output power at 1KHz
Output adjustment ratio	Less than 3dB from full load to no load
Tone control	Bass: +-10dB(100Hz)
Tone control	Treble: +-10dB(10KHz)
S/N ratio	Over 76dB
AUX audio output	Stereo output for zone 1 and 2 : 1V(+-0.3V)
PA output protection	The zones 1,2 and 3 are provided with output short circuit protection, overload protection and DC protection as well as protection lock. The zone 4 to 10 are provided with output short circuit and overload protection
Power supply	AC220-240V/50-60Hz
Power consumption	<400W
Power supply protection	AC220V/F6A
External size (mm)	430x345x132
Gross weight (Kg)	10.0

Remote Control Pad: HS-80R

Description:

◆ Easy-operation wired remote control pad for HS-6818 Home Music Playing & Controll Device.
◆ Soft-touch operation, luxury design with LCD display
◆ Functions with controll device including room audio source selection, volume & tone adjustment, MP3 program lookup and radio controll
◆ With presetting address code in each controlled room
◆ Up to 300 meters control distance from control device
◆ Remote control by infrared controller

Remote Control: HS-21

Description:

◆ Soft-touch operation
◆ With sound source selection, volume and tone control function.
◆ With AM/FM or mono/stereo switch function
◆ With MP3 program selection function
