Product ID: HS-8328

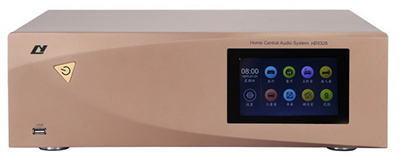

8 Zone Digital Multi-room Music System
8 Zone Digital Multi-room Music System
  • Description
  • Picture
  • Datasheet

  • Host HS-8328 Description:

◆ Built-in MP3 player, FM & AM digital tuner, with DVD, PC, TV, AUX audio input interface
◆ Support external USB port MP3 program input (flash disk, portable hard disk, MP3 player)
◆ RJ45 output connection
◆ 8 independent stereo audio output interfaces for 8 zones, support extension up to 72 zones max; independent volume / tone control; optional audio sources input for each zone
◆ 1 channel of DVD audio input interface, 2 channel of AUX audio input interface
◆ Console panel control and remote control available
◆ Timing control is available for each zones, up to 100 timing points can be programmed each day, and 7 days per week
◆ Every zone adopts the stereo output, rated output power of the zone No.1 is 2x100W; rated output power of the zone No.2-8 is 2x30W; In the extending power amplifier, four of the zone have the rated output power of 2x30W

  • Specification:


Item Parameter
Zone quantity 8 zone
Audio indicator Line input sensitivity 520mV (±50mV)
Line input resistance >10kΩ
Rated output power Zone 1: 2×100W/8Ω
Zone 2-8: 2×30W/8Ω
Frequency response 20Hz-20kHz (±0.5dB)
T.H.D <0.3% (f=1kHz, 1/3 of rated output power)
S/N >81dB
AUX audio output Stereo output: 520mV (±50mV)
Output protection Output short circuit, overloading, direct current protection
Power supply AC220-240V/50-60Hz
Total power 600W
Power protection AC220V/F6A
Product dimension (LxWxH)mm 430×345×132
Packing dimension (LxWxH) mm 540×540×230
Net weight (Kg) 14.6
Gross weight (Kg) 19.0

  • Remote Control Pad HS-828R

 remote control pad
manual book download

◆ Easy-operation wired remote control pad for HS-8328 Home Music Playing & Control Device
◆ Soft-touch operation, luxury design with LCD display
◆ Functions with control device including room audio source selection, volume & tone adjustment, MP3 program lookup and radio control
◆ Build-in MIC, talk or call other rooms are available
◆ Up to 300 meters control distance from control device
◆ Remote control by infrared controller



  • Remote Control HS-818

 remote control

◆ Soft-touch operation
◆ With sound source selection, volume and tone control function
◆ With AM/FM or mono/stereo switch function
◆ With MP3 programme selection function.

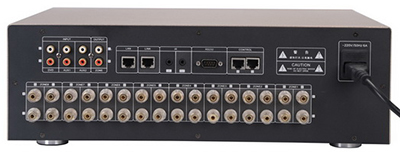

back view
