Product ID: M-1116
10 Zone Intelligent Public Address Center
10 Zone Intelligent Public Address Center
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

5" LCD touch screen display, built-in 1G memory
One channel of fire alarm switch and emergency microphone
One audio playback button, which is used to play the emergency audio recording; the audio shall be recorded with the MIC or LINE port on the panel
Background sound source recording. The audio shall be recorded with the MIC or LINE port on the panel
Level indicator: It is used to indicate the outputs of all the signal sources
4 channels of timing power time sequencer (Maximum gross power of 220V/2000W) and 1 channel of short circuit triggering interface (Trigger control time sequencer)
2 channels of paging microphone interface (Connected to PB9810R), 1 channel of background and 1 channel of emergency (Paging) line output, and 1 channel of wireless microphone input
10 channels of short circuit triggering
It is possible to connect 5 background power amplifiers (Maximum power of each power amplifier is 2000W) and 1 emergency (Paging) power amplifier (Maximum power is 2000W)
Equipped with 4Ω /10W (1kHz, 1% degree of distortion) monitoring output
BGM source with FM Tuner, USB,SD and AUX input
5 timing programs with each 200 timing points.

  • Technical Parameter

Model M-1116

Channel A output At 1V/1KHZ sine wave

MP3 input sensitivity 200-350mV
Line recording input sensitivity 200-350mV
Microphone recording input sensitivity 2-3.5mV

Channel B output At 1V/1KHZ sine wave

Microphone input sensitivity 2-3.5mV
Wireless microphone input sensitivity 200-350mV
Remote paging input sensitivity (voltage at pin No.8 and No.9) 1000±100mV
Line recording input sensitivity 200-350mV
Microphone recording input sensitivity 2-3.5mV
Maximum noise Channel A/B (When channel B is switched to wireless microphone) ≤0.5mV
When channel B is switched to local microphone input ≤1mV
Monitoring ≤1.5mV

Degree of distortion (Output of 1KHZ 1V)

Channel A/B (Input of line) ≤0.3%
Channel B (Input of local microphone) ≤0.5%
Frequency response (±3dB) Microphone input frequency response 50-20KHz
PC1010R input frequency response 50-20KHz
Wireless microphone input frequency response 100-20KHz
MP3 output frequency response 200-20KHz
Line recording input frequency response (output of channel A) 350-20KHz
Line recording input frequency response (output of channel B) 100-10KHz
Monitoring (220V power supply/1KHZ, ≤1% degree of distortion) 6-7.5V
(+24V power supply/1KHZ, ≤1% degree of distortion) 5-6V
Protection 1.AC220V/ 1A;
2.DC+24V/2A (Only for M-1116D)
Dielectric strength test Between poles of power supply and input/output termina 4200 VDC
Between poles of power supply and metal shell 2200 VDC
Display screen 5" LCD touch screen
Power Requirement AC220V/50Hz
Net weight 8kg
Gross weight 9.5kg
Product dimension (LxHxD) 483×88×350mm

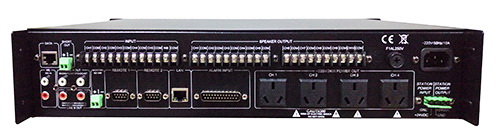

back view
