• Description

◆ All-digital design, high fidelity and high speech transmission
◆ 1 channel / 4 channel audio signal output simultaneously
◆ Dual network interface, can expand to other network equipments
◆ DC 24V/100MA output and short circuit output, two output mode are controlled simultaneously
◆ 10M/100M self-adaptive network transmission
◆ Support the maximum 48KHZ, sampling rate 16Bit MP3/ WAV/PCM decoding
◆ Built-in watchdog function
◆ Customize network protocol interface
◆ Combined with forced plug input and linked output
◆ Local monitoring volume is controllable

• Parameter


Item			Parameter
EMC parameters (EMC LINE IN port input)	M-6801	CH1 rated output	1V
	M-6804	CH1, CH2, CH3 and CH4 rated output	1V
	Input sensitivity	MAX	250mV
		MIN	4V
	Effective frequency range of gain limit (±3dB)		50Hz-20kHz
	Signal-noise ratio (low pass 30kHz)		≥70dB
	T.H.D. (1kHz, 1/3 output voltage)		≤0.1%
	EMC LINK output		Equal to EMC LINE input (±10%)
	Input dynamic scope		≥26dB
Network decoding parameters (host machine MP3 input)	M-6801	CH1	1V
	M-6804	CH1, CH2, CH3 and CH4 rated output	1V
	Distortion degree (1kHz -10dB/MP3)		≤0.2%
	Effective frequency range of gain limit (±3dB)		50Hz-20kHz
	Signal-noise ratio (low pass 30kHz)		≥70dB
Alarm output (Host software control)	COM-24V output		24V (≤100mA)
	COM-SC output		Short circuit (<1Ω)
Built-in monitoring power			1.2W
Network			Dual network interface 10M/100M self-adaptive
Power supply			AC 180V-242V/50Hz
Power consumption			12W
Product dimension (LxWxH)			555x360x120mm
Packing dimension (LxWxH)			482x273x44mm
Net weight			3.31Kg

• Rear View

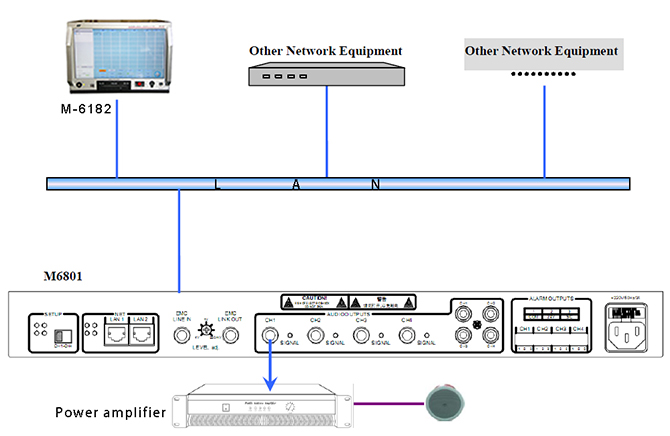

• Connection with M-6182 Main Control Center

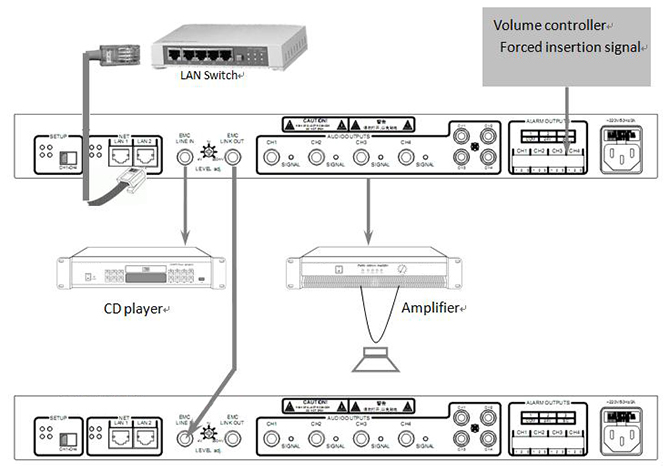

• Connection with M-6804 4-Channel Network Audio Output Terminal

• M-6801_M-6804.pdf
