Central control unit, adopts professional central industrial control host, excellent system performance and internally installed SSD solid-state drive and chip so that it can work for 24h all around the clock as well as runing under low-temperature or high-temperature stably without interrupt invaded. In additional, system needs no additional maintenance in virtue of mature Ethernet hardware. Small size, low-power dissipation and true energy-saving operation. Disposed by professional central control management software, it can conduct timing point management, built-in program management and partition management.
◆ Zones can be displayed automatically without pre-setting or reboot
◆ Built-in 2×15W high fidelity digital power amplifier with low power consumption
◆ Support BGM, emergency paging, and siren alarm from the system host machine
◆ 1 AUX audio input, 1 AUX audio output, 1 Mic input, 1 EMC emergency output 1 way short-cut output
◆ Output volume and display status can be controlled by system host
◆ All zones group management avaiable, group on/off, volume control and other operations are avaiable from any zone of the LAN
◆ Timing points and management
◆ Program control and manual control avaiable
◆ All groups stats disply: on-off/volume/real-time program name, program list and timing point information
◆ Conduct broadcasting program operation on single or multiple grouping (s) or zone (s)
◆ Two control modes: program control and manual control
◆ It can add / modify / delete the timing points and send down the points to assigned devision
-
Parameter
|

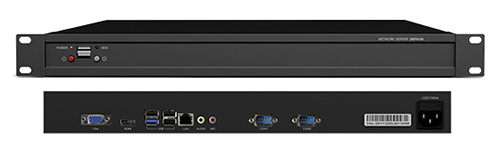

Model |
M-9100 |
|
Processor |
Intel Celeron |
|
RAM |
2G/DDR3 |
|
Hard disk |
64G solid |
|
Video interface |
HDMI, VGA |
|
Audio interface |
1 Headphone jack
1 microphone jack |
|
USB interface |
Front: 2xUSB, back: 4xUSB |
|
Support protocal |
TCP/IP、UDP、IGMP(Multicast) |
|
Network |
RJ45(10/100M Ethernet) |
|
Zones support |
200 |
|
Power supply |
AC220V/50Hz |
|
Product dimension (mm) |
430x214x44 (LxWxH) |
|
Net weight |
2.3Kg |
-

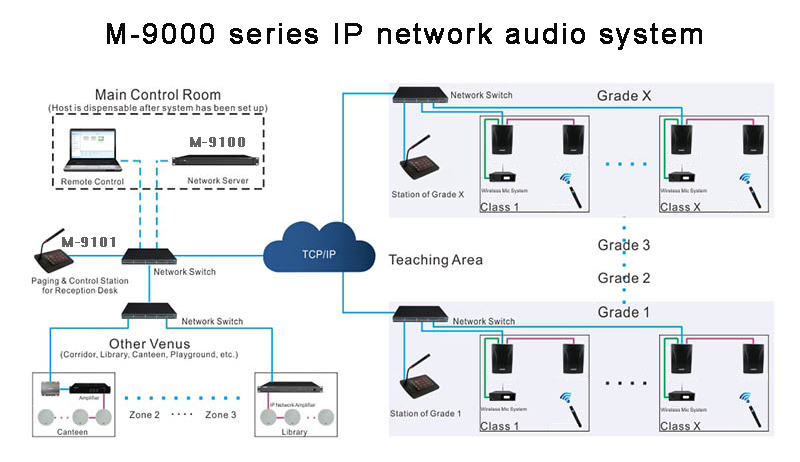

System connection reference
