Product detail

Home » PA Amplifier » Pre Amplifier

 Checkout
Product ID: PB-2011P
Pre Amplifier
Pre Amplifier
  • Description
  • Picture
  • Datasheet

  • Description:

◆ 5 MIC inputs, 3 AUX inputs, 2 priority inputs (EMC)
◆ MIC1 overrides MIC2-5 & AUX1-3
◆ 2 AUX outputs
◆ Individual volume control for EMC & AUX inputs
◆ EMC1 & 2 overrides all other inputs except MIC1
◆ Build-in chime music
◆ LED power indicator

  • Specification:

Inputs: Mic1, 2, 3, 4, 5: 600Ω, 18mV, unbalanced
Aux1, 2, 3 : 10KΩ, 200mV, unbalanced
EMC1, 2: 10KΩ, 1.5V, unbalanced
S/N: MIC1, 2: 70dB
AUX 1, 2, 3: 80dB
Frequency Response: 20Hz-20KHz
Tone: Bass : ±10dB(100Hz)
Treble : ±10dB (10KHz)
T.H.D.: <0.1%
Muting Function: MIC1 overrides other input with 0-30 dB attenuation;
EMC1, 2 overrides all inputs except MIC1
Protection: AC fuse
Power Requirements: AC 110V / 220V(±10%),  50 / 60 Hz
Power Consumption: 50W
Net Weight: 7.5Kg
Product Dimensions(mm): 483(W) x 366(D) x 89(H)

side view

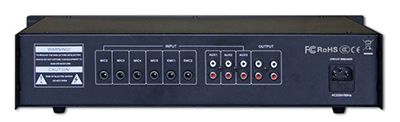

rear view
