Product ID: PB-3060Z/PB-3120Z/PB-3240Z/PB-3360Z/PB-3480Z

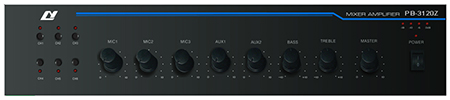

6 Zone Mixer Amplifier
6 Zone Mixer Amplifier
  • Description
  • Picture
  • Datasheet

  • Description:

◆ 2 AUX input, 3 MIC input, MIC1 with muting function
◆ Individual input volume control
◆ Output: 70V, 100V, 8Ω
◆ LED indicator
◆ Short circuit protection & alarm

  • Specification:

 Model  PB-3060Z  PB-3120Z  PB-3240Z  PB-3360Z  PB-3480Z
 Rated output power  60W  120W  240W  360W  480W
 Max output power  90W  180W  360W  540W  720W
 Output  70V, 100V, 8Ω
 AUX output level  600Ω, 1V (0dBV)
 Input level  MIC 1,2,3: 600Ω, 6mV (unbalanced)
 AUX 1,2: 10KΩ, 250m (unbalanced)
 Frequencey response  100Hz-16KHz (±3dB)
 T.H.D.  <0.1% at 1KHz, 1/3 rated output power
 S/N ratio  MIC 1,2,3: ≥66dB
 AUX 1,2: ≥70dB
 Tone control effect  Bass:±10dB at 100Hz
 Treble: ±10dB at 10KHz
 Power consumption  120W  240W  480W  720W  960W
 Protection  AC fuse, DC voltage, Overload, Short circuit
 Muting function  MIC1 overrides other input signals at 0~30dB
 Power supply  AC220~230V/50Hz
 Product dimension (WxDxH)  430x260x88mm  430x388x88mm
 Net Weight  6.0Kg  8.0Kg  10.0Kg  12.6Kg  16.3Kg

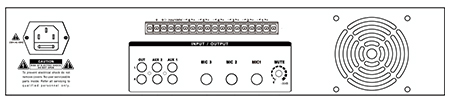

back view
