Product detail

Home » PA Amplifier » Power Amplifier

 Checkout
Product ID: PB-81000/PB-81500/PB-82000
Power Amplifier
Power Amplifier
  • Description
  • Picture
  • Datasheet

  • Description:

◆ Speaker outputs: 100V, 70V and 4~16Ω
◆ 5 LED indicators for status display
◆ XLR socket and 6.35 mm jack for amplifier link
◆ Short circuit output protection & LED display
◆ Series amplifiers with high output power available

  • Specification:

Model PB-81000 PB-81500 PB-82000
Rated Output Power 1000W 1500W 2000W
Output Mode 4-16 ohms 70V/100V line voltage
Input AUX 10k ohms 0.775V (0 dB) ,Unbalanced
  MIX 10k ohms 0.775V (0 dB) ,Unbalanced
S/N: >85dB
Frequency Response 60 Hz ~ 15k Hz (±3dB)
THD <0.5% at 1kHz,1/3 of rated power
Controls Volume control,power switch
Cooling Style 12V DC fan
Indicators POWER: green, CLIP: red, SIGNAL: green, PROT: red, TEMP: orange
Protection AC FUSE×1, short circuit, overload, high temperature
Power Requirements AC110V 120V, AC220V ~240V 50-60Hz optional
Power Cord (3×1.5 mm )×1.5M (Standard)
Power Consumption 1350W 2000W 3000W
Gross Weight 31.5Kg 35.2Kg 38.5Kg
Net Weight 27.5Kg 30.0Kg 34.5Kg
Product Dimension (mm) 132(H)×486(W)×483(D) "3U"
Packing Dimension (mm) 225(H)×610(W)×585(D)

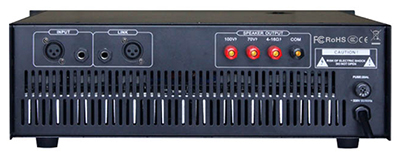

back view
