Product ID: PB-9306/PB-9312

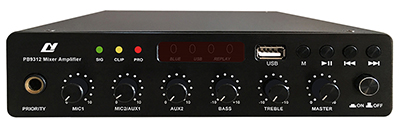

Ultra-mini Digital Amplifier with MP3/Bluetooth
Ultra-mini Digital Amplifier with MP3/Bluetooth
  • Description
  • Picture
  • Datasheet

  • Description

◆ Rated power: 60W/120W
◆ 100V constant output
◆ Built-in MP3 player, support USB and bluetooth playing function
◆ 2 MIC input, one is with priority function (automatic muting function) and one with phantom input
◆ 1 AUX input, 1 AUX output
◆ Bass and treble individual volume control
◆ MIC, AUX and master individual volume control
◆ MP3 player remote control avaiable
◆ LED display screen
◆ Signal indicator LED light
◆ Ultra-compact and slim size design

  • Specification

Model PB-9306 PB-9312
Rated power 60W
(Don’t connect it with constant pressure speakers whose rated power is higher than 60W)
120W
(Don’t connect it with constant pressure speakers whose rated power is higher than 120W)
Speaker output 100V
Input sensitivity MIC1: 5mV RMS
MIC2: 6mV RMS
Line1, Line2, Priority in: 300mV RMS
Priority in (100V): 100V RMS
Frequency response 80Hz-15KHz
Distortion ≤0.5% (at 1KHz)
S/N ratio 100V RMS: ≥74dB (MAX volume)
Line2, Priority in: ≥80dB (MAX volume)
Protection DC voltage, overload
Power supply AC180V~250V, 50/60Hz
DC24V
AC180V~250V, 50/60Hz
Product dimension 200x190x44mm
Net weight 1.5Kg
Gross weight 2.0Kg

back view
