Product ID: PM-7806/PM-7812/PM-7825/PM-7835
2 Zone Mixer Amplifier Combined with DVD/CD/VCD/MP3/MP4/Tuner
2 Zone Mixer Amplifier Combined with DVD/CD/VCD/MP3/MP4/Tuner
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

◆ All-in-one public address device combining CD/DVD/VCD/MP3/MP4 player, tuner, pre-amplifier and power amplifier together.
◆ Fluorescence digital display, totally-digitalized tactile control.
◆ Equipped with USB interface, supports common USB flash disk, mobile hard disk, etc.
◆ Phantom power supply for 1-channel AUX input, 4-channel microphone XLR input.
◆ Built-in chime generator, chime short-circuit toggles output instantly.
◆ Chime signal overrides 4-channel microphone signal, CD/DVD/VCD/MP3 player signal, tuner signal and AUX signal.
◆ High and low tone control, and volume control available.
◆ 100V and 70V fixed-voltage output and 4Ω-16Ω fixed-resistance (balanced, not grounded) output.
◆ 2 zones output.

  • Specification:

Model: PM-7806 PM-7812 PM-7825 PM-7835
Output Power: 60W 120W 250W 350W
Output Regulation: From full-load to no-load, less than 5 %
Output Method: 4Ω balanced output, 70V&100V fixed-voltage outputs
Zone Output: 600Ω, 1V(0 dBV)
Aux Output: Zones 1 and 2: 100V
Input: MIC 1, 2, 3 & 4: 600Ω, 2.5 mV - 500mV, unbalanced
AUX: 10kΩ, 200 mV, unbalanced
Frequency Response: MIC 100Hz~15KHz; AUX 40Hz~20KHz
Phantom Power Supply Voltage: 48±2V
Harmonic Distortion: Less than 0.5% at 1KHz, 1/3 rated power
Line S/N(4Ω output ): 70dB 72dB 76dB 77dB
Mic S/N 4Ω output ): 70dB 72dB 76dB 77dB
Tone Adjustment: Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Protection: AC fuse, DC output protection, and overload protection
Muting Function: MIC 1 overrides other input signals with 0~-30dB attenuation
Power Requirements: AC 220~240 V / 50~60 Hz
Power Consumption: 120W 250W 500W 600W
Net Weight(Kg): 16.4 20.5 25.3 29.4
Dimensions(mm): 420×400×132

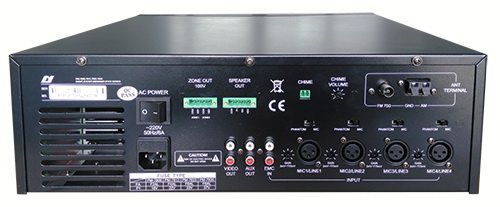

 rear view
