Product detail

Categories » PA Amplifier » Mixer Amplifier » Matrix Mixer Amplifier

 Checkout
Product ID: PM-906/PM-912

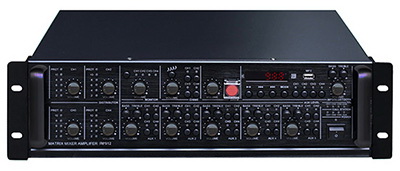

8x4 Matrix Mixer Amplifier with Paging/USB/Bluetooth
8x4 Matrix Mixer Amplifier with Paging/USB/Bluetooth
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Desciption:

    ◆ Rated power: 4x60W/4x120W, 100V/70V/4-16Ω
    ◆ Matrix PA Amplifier combined with paging, USB and bluetooth
    ◆ 3 MIC input, 5 AUX line input, 4 AUX line output for link
    ◆ 8x4 Matrix 100V output with individual volume control output, all sound sources have the function of matrix 4-channel output
    ◆ 4 remote paging microphone interface (should work together with our CM12 remote paging microphone)
    ◆ TEL input avaiable, with monitor speaker output
    ◆ With one key touch EMC function
    ◆ Input priority level (default):
        Level 1: AUX1, Siren, TEL, remote paging, Bell
        Level 2: MP3, AUX2, 3, 4, 5
    ◆ LED indicator, level indicator and protection indicator

  • Specification:

    Model PM-906 PM-912
    Output power 60W*4 120W*4
    Output 100V, 70V, 4-16Ω (balanced)
    Input sensitivity AUX (MIC) 1, 2, 3: 3.0±0.5mV/600Ω; 300±50mV/10KΩ balanced
    AUX 4, 5: 300±50mV/10KΩ, unbalanced
    Call station 1, 2: 2000±100mV/10KΩ, balanced
    TEL: 300±50mV/10KΩ
    Frequency response 80Hz~16KHz
    T.H.D. Less than 1% at 1KHz
    Tune control ±10dB (Bass: 100Hz);
    ±10dB (Treble: 10KHz)
    S/N ≥55dB
    AUX line output 2V/600Ω, balanced
    MP3 support MP3, WMA, WAV, ACC, 32G flash disk or by bluetooth
    Protection overload, short circuit, overheat, DC output
    Power requirement AC 220~240 V / 50~60 Hz
    Net weight(Kg) 25.5 28
    Gross weight(Kg) 28 30.5
    Dimensions(mm) 483x440x132
    Packing dimension (mm) 550x550x215

back view


Product Reviews

No Reviews For This Product.

Click to review this product

10 Zone Remote Paging Microphone (for PM-812/PM-825/PM-835 and PM-906/PM-912)
Product ID: CM12

  • With 5 level LED indicator
  • Can remote page up to 10 zones (MAX paging distance 800M)
  • 2 build-in bell signal
  • RJ45 cable is used for connection between amplifier and paging microphone, and betweens two microphones
