Product ID: PP-221URBT

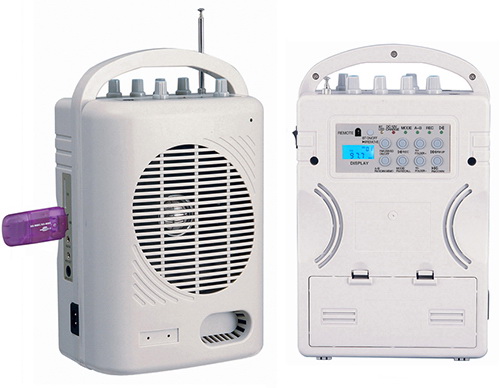

Portable Wireless PA Amplifier with Recorder and Bluetooth
Portable Wireless PA Amplifier with Recorder and Bluetooth
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

    All in one design for easy carrying and portable use. SMT technology and SMD electronic components used in building this amplifier, so the quality is very stable and last long. Low power consumption for long time operation with integrated circuitry. The system works on both AC and DC.You can also use the built in 1.2AH rechargeable battery. or with car cigarette lighter power for DC 12V.(The power cord for car is not included, call us for optional purchase)

    ♦ AUX input for connecting to MD/CD etc.
    ♦ AUX output, speaker output 8 ohms.
    ♦ USB/SD play function in MP3 format.
    ♦ FM radio.
    ♦ With digital MP3 recorder in USB/SD card, 1GB record 1000minutes and 64GB record 64000 minutes.
    ♦ With bluetooth play function.
    ♦ LCD displayer.
    ♦ Tone control.
    ♦ Wired/wireless microphone.
    ♦ Digital echo control.
    ♦ Quartz stabilizer for carrier frequency transmission to avoid interference.
    ♦ Amplifier working in UHF band and there are 0~99 different possible frequencies from 700 MHz to 900 MHz.
    ♦ 9V common battery or 8.4V rechargeable battery can be used in the wireless handheld microphone and the wireless transmitter.
    ♦ 3 styles of microphones are good for different purposes.You can use the handheld mic, headset mic and Lavaliere alternatively. Uni-directional Lavaliere microphone with high sensitivity for clearly voice transmission and receiving.
    ♦ Low voltage circuit protection for the built-in rechargeable battery to avoid the damage of the rechargeable battery in case of incorrect operation.

  • Specification:

Output power 50W (max)
Input 1xAUX, 1xΦ6.5 wired MIC
Ouput 1xAUX, 1x8Ω speaker out
Build-in - USB/SD/FM Tuner
- DC 8.4V rechargeable battery charger or DC 3V rechargeable battery charger
- Digital MP3 recorder in USB/SD card, 1GB record 1000minutes and 64GB record 64000 minutes
- Bluetooth player
Frequency channel Single wireless channel
Frequency range VHF 165-265MHz/UHF 700-900MHz
Sensitivity 10dB/*V
S/N >60dB
T.H.D. <1%
Speaker size 1x6.5" full range speaker (4Ω)
Wireless range 35m MAX in VHF receiver module and 80m MAX in UHF
Power supply AC 110V/220V~240V 1A, external: DC 12V-1A
Built-in DC 12V-1.2AH rechargeable battery or build-in DC 12V-2.2AH Li-ion battery
Dimensions 180(W)x110(D)x300(H) mm
Gross weight 2.7Kg
Operating temperature -25°C~50°C
