Product detail

Categories » PA Speaker » Column Speaker » Phased Array Column Speaker

 Checkout
Product ID: CS-1501/CS-1502

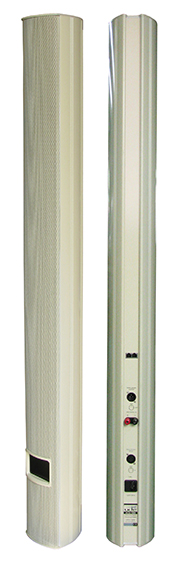

Phased Array Column Speaker
Phased Array Column Speaker
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description

    This active column speaker build-in digital amplifier and digital signal processor, allow users adjusting the vertical beam radiation directivity through remote controller, to make it adapt to the different requirements according to the building acoustics.It is beening great use specially in places with reverberation and complex acoustics (Churches, Sport centers, Halls, etc. ).

    Build-in digital signal processor, like the inside equilizer, can obviously improve the sound quality compared to the conventional columns. Inside amplifier consists of 10 digital D-class channels and provides a high efficiency.

    The system can automatically cut off its power and leave it in standby when there is no audio signal input (energy savings).

    Remote control function makes all adjustment easy and comfortable.

♦ Acoustic configurable beam
♦ Loud beam inclination upto -45° to +45°
♦ SPL variation between -3dB to +3dB in the covered area
♦ Audio signal input: 0dB (300mV) or 70~100V
♦ Input sensitivity adjustable
♦ Equilizer adjustment
♦ Volume control, treble and basee adjustment separately
♦ LED screen display volume (base/treble), input sensitivity, equalization, directional angle, focus point, etc.
♦ Mute function
♦ All functions remote control available

  • Specifications

     Model No.:  CS-1501  CS-1502
     Rated power:  100W  150W
     Effective frequency range:  80Hz-18KHz
     Lobe inclination adjustment range (vertical):  -60° ~ +60°
     Lobe inclination adjustment range (horizontal): -45° ~ +45°
     Lobe focus radiation range: -5m ~ -200m; +5m ~ +200m
     Frequency response: 80Hz - 18KHz
     Sensitivity: 98dB (1m, 1W)
     Max sound pressure level: 188dB
     Sensitivity adjustment: 00dB, -06dB, -10dB at 100V input
     Input sensitivity (Line): 300mV (-10dB) / 500mV (-6dB) / 1000mV (00dB)
     Input sensitivity (70-100V): 30V (-10dB) / 50V (-6dB) / 100V (00dB)
     Equilizer points (14 points): 80/120/270/420/640/1K/1.5K/2.2K/3.3K/5K/7.5K/12K/18K/20K Hz
     Equilizer adjustment range: ±12dB
     Power supply: AC220~240V / 50~60Hz
     Speaker driver size:  4" x 10pcs 5" x 10pcs
     Net weight (Kg):  13 22
     Packing weight (Kg):  16 26
     Product dimenstion (mm):  1365*146*132.3 1602*153*154.5
     Packing size (mm): 1505*265*280 1735*310*315

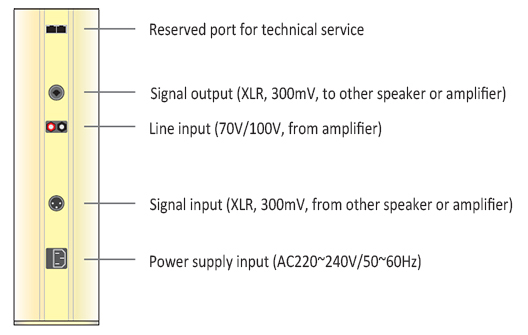

  • Connection Ports Desctription


connection port description

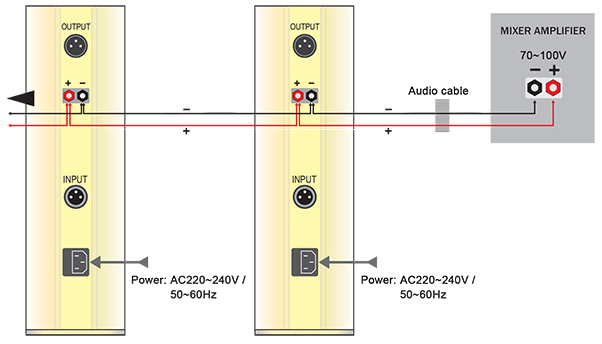

  • Connection Drawing (70V/100V)


connection drawing

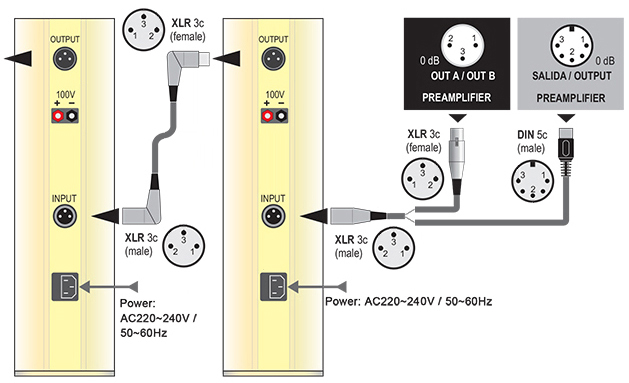

  • Connection Drawing (AUX via XLR port)

    connection drawing

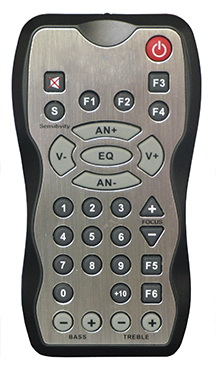

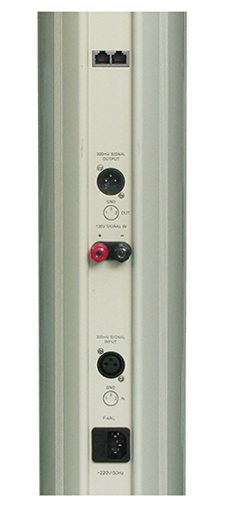

back view remote control
