Product ID: H-66B

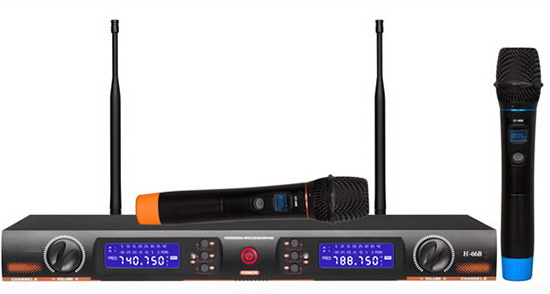

200 Channel UHF Wireless Microphone
200 Channel UHF Wireless Microphone
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description:

    ◆ New energy saving mode, automatic EQ control, tone correction and IR frequency sync function
    ◆ Using a high frequency SAW filter to maximally filter out interfering signals
    ◆ Build-in audio compression expander circuit greatly improves SNR
    ◆ Unique audio compressor design effectively eliminates whistle
    ◆ Frequency synchronization between any receivers and microphones in the system is realized

  • System Specification:

    Workding Frequency: UHF 740MHz~789.75MHz
    UHF 610MHz~659.75MHz
    Modulation: FM
    Frequency Channel: 200
    Switching Bandwidth: 250KHz
    Dynamic Range: >100dB
    S/N Ratio: >105dB
    T.H.D.: ≤0.5%
    Frequency stability: ±0.005%
    Max Deviation: 45KHz
    Frequency Response: 80Hz-18KHz(±3)
  • Receiver Parameter:

    Receiving Mode: DPPL
    Medium Frequency: 110MHz, 107MHz
    Antenna Connection: BNC/50Ω
    Sensitivity: 12dBuV
    Sensitivity Adjustment Range 12~32dBuV
    Noise Rejection: >75dB
    Max Output Level: +10dBV
  • Transmitter Parameter:

    Antenna: Build-in
    RF Output: <10mW
    Noise Rejection: -60dB
    Transmission Range: 100m
    Power Supply: 2pcs AA batteries
    Battery Life: 10 hours in normal power; 12 hours in low power

  • Optional Transmitter:
