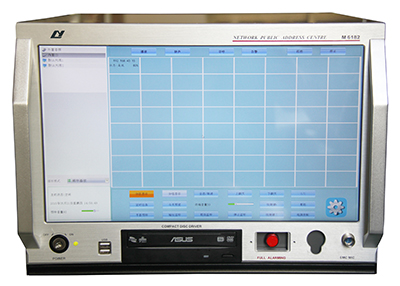

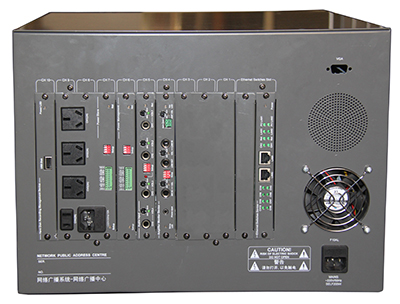

M-6182 Series Network Public Address System Main Unit
The M-6182 series network PA system is an integrated and intelligent PA system, based on internet and built in modules and layers, digital transmission and realized by Lan, transmission distance can be more than 10 kilometers.
Configuration of the system can take advantage of the existing LAN system, time & cost is saving. The network system make it possible for interaction due to its combination with LAN system, while the traditional PA system unable to reach.
Multiple terminals can be connected to this network PA system control center, such like the terminal player, on-demand terminal, paging terminal, one-touch emergency alarm terminal. Besides, the system control center combined audio player, paging, pre-amplifier, timer, equalizer, and powerful audio matrix function, etc.
This network system can be applied to different occasions, like the airport, port, university, school, large gathering site (e.g. Expo), stadium, industrial park, park, railway and highway, etc.
◆ 17" large color LCD display, touch screen and touch-pad
◆ Support upto 1000 zones, any zone, any time and any audio soure play programmable
◆ Zone paging avaiable from the main center and external paging terminal
◆ Zonal monitor, able to monitor the play mode and volume of the terminal
◆ Audio input channels extensible by network paging terminals
◆ Build-in CD player and mass storeage for user choosing sound source
◆ Timer function, timing points can be programmed directly on the main unit or on PC and then downloaded into the main center
◆ One key touch-ready for all zone alarm or manual alarm
◆ LAN installation, no need extra wiring
-
Technical Parameter
|
Item |
Parameter |
|
Dispay Screen |
17 inche TFT 32 touc screen |
|
S/N ratio |
Line: >70dB
MIC: >60dB |
|
T.H.D |
<0.5% at 1KHz |
|
System audio input level |
Line: 300mV±20mV
MIC: 10mV±2mV |
|
System audio output level |
0dB |
|
Power output method |
4-16Ω |
|
Non-distortion output Power |
10W |
|
Power supply capacity |
Singel channel current: 2A |
|
Power consumption |
AC 180~240V/50Hz/150W |
|
Dimension |
483x445x308mm |
|
Net weight |
24.50Kg |
|
Gross weight |
33.70Kg |
-
Sample System Connection Drawing
Product ID: M-6419
-
LAN connection anywhere
-
Long transmission distance of wireless remote control, >1.5km in open area
-
12 buttons control different functions from the remote controller
-
Can also control all zones audio source play and stop within one LAN
-
100/10Mbps, TCP/IP network transmission protocol adaptive
-
Built-in 2x25W high efficiency digital amplifier
-
Built-in 4Ω 25W Hi-Fi speakers
-
1 AUX audio input, 1 AUX audio output and 1 MIC input
-
7 inch true color display screen, touch screen control
-
Support up to 1000 zones
-
Support zone paging and group paging
-
Support TCP/IP protocol transmission, compatible with WAN / LAN
-
1 line input, 1 line output, 1 earphone monitoring interface
-
Equipped with MP3 player, USB and SD port
-
Rated output power: 60W, 120W, 250W, 350W, 650W
-
100V constant voltage output
-
1 AUX audio input and 1 MIC input, 1 AUX output
-
100V local emergency input
-
Full function of M-6182 Network PA System Control Center software
-
Build-in 2*25W digital amplifier
-
1 AUX input, 1 MIC input, 1 AUX output
-
Local MIC input with mute function
-
4 LED indicate machine working status
-
8 push buttons for daily normal operation
-
Can connect to M6402 broadcast control panel, achieve playing main unit programs freely
-
3.2” touch screen control, TFT true color display
-
Can choose and play main unit audio sources
-
Can receive main unit broadcasting & emergency broadcasting
-
Can receive main unit forcing paging and telephone paging, or page other zones from this terminal
|
