Product detail

Categories » Public Address System » Audio Matrix » 8x8 Digital Audio Matrix

 Checkout
Product ID: M-808C

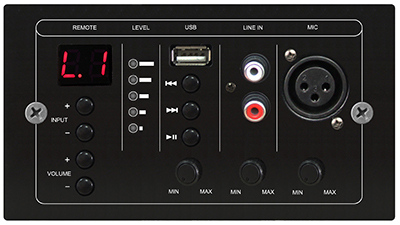

8 Zone Remote Control Panel
8 Zone Remote Control Panel
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

    ◆ Network port balanced output audio
    ◆ Audio signal level indicator
    ◆ Partition source control and volume control
    ◆ With digital screen & 24V DC power supply
    ◆ MP3 play and independent volume control
    ◆ 1 line input and independent volume control
    ◆ 1 MIC input and independent volume control

  • Technical parameter

    Model M-808C
    Input sensitivity MIC 10±2mV
    Line 300±50mV
    USB -10dB
    Frequency response MIC 100Hz～15kHz (±3dB)
    AUX 100Hz～15kHz (±3dB)
    Noise <0.5mV
    Distortion Distortion
    Power supply DC 24V
    Net port output level (balance) 2000±100 mV
    Product size (L×W×H) 145mm×80mm×47mm
    Packing size (L×W×H) 310mm×180mm×95mm (1pc)
    Net weight 0.4Kg
    Gross weight 0.7Kg (1pc)









Product Reviews
No Reviews For This Product.
Click to review this product
8x8 Digital Audio Matrix
Product ID: M-808
8x8 Digital Audio Matrix

  • 8 input 8 output digital audio matrix (extend to 32 zones)
  • 4 remote paging station
  • Remote panel control for each zone
  • 1 EMC input & output
  • Build-in MP3 player, FM tuner
8 Zone Mini Remote Control Panel
Product ID: M-808S
8 Zone Mini Remote Control Panel

  • Individual partition source selection
  • Individual partition volume control
  • Network port balanced audio output
  • DC 24V power supply
