Product detail

Categories » PA Amplifier » Mixer Amplifier » Multi Zone Mixer Amplifier

 Checkout
Product ID: PB-210P/PB-310P/PB-610P/PB-1010P

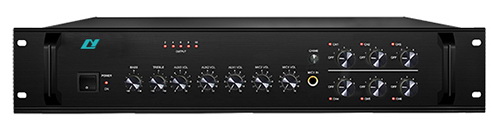

6 Zone Mixer Amplifier
6 Zone Mixer Amplifier
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

◆ 6 channel integrated mixer/zone amplifier
◆ Individual channel volume selection and output level indication
◆ 2 MIC inputs with volume selector and 3 AUX line inputs
◆ 1 line output for additional mixer/amplifier
◆ 4-6Ω single speaker output/6 channel 100V output
◆ 2 levels priority muting function: MIC 1>chime
◆ Treble and bass volume control separately

  • Specification:
Model: PB-210P PB-310P PB-610P PB-1010P
Output Power: 60W 120W 250W 350W
Output Regulation: <2dB from off-load to full load
Speaker Output: 4-16Ω single output and 6 channel 100V output
Input: MIC: less than 3.5mV
Line: less than 300mV
Frequency Response: 80Hz-16KHz (±3dB)
Distortion: Less than 0.5% at 1KHz
S/N: MIC: >71dB
Line: >85dB
Tone: Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Protection: DC voltage; overload; short-circuit
Muting Function: MIC 1 overrides other signal inputs
Power Requirements: AC220-240V/50-60Hz
Power Consumption: 120W 250W 500W 650W
Gross Weight: 11.5Kg 12.5Kg 14.5Kg 15.5Kg
Net Weight: 10Kg 11Kg 13Kg 14Kg
Dimensions(mm): 418x88x338(mm)

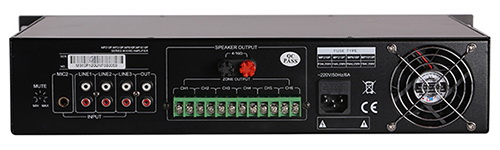

rear view
