• Description:

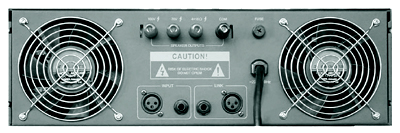

◆ Speaker outputs: 100V, 70V and 4Ω

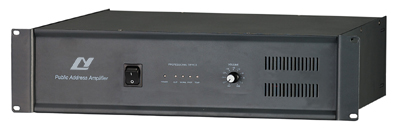

◆ 5 LED indicators for status display
◆ XLR socket and 6.35 mm jack for amplifier link
◆ Short circuit output protection & LED display
◆ Series amplifiers with high output power available

• Specification:



Model:	PB-6002	PB-7002	PB-8002
Rated Output Power:	1000W	1500W	2000W
Input Sensitivity:	1.2V
S/N:	>90dB
Frequency Response:	80Hz~15kHz / ±3dB
THD 4 /1kHz:	<0.3%
Cooling Style:	220V AC fan		DC fan
Indicators:	Power: Red, Clip: Red, Sound: Green, Protection: Red, Temperature: Orange
Protection:	Turn on delay, thermal, DC fault, short circuit
Power Requirements:	AC 220~240 V / 50 ~ 60 Hz
Power Consumption:	1800W	2600W	3500W
Gross Weight:	34.5Kg	40.5Kg	42Kg
Net Weight:	31Kg	37Kg	38.5Kg
Dimensions(mm):	132x483x480

• PB-6002_PB-7002_PB-8002.pdf
