Product ID: PB-6906/PB-6912/PB-6925/PB-6935

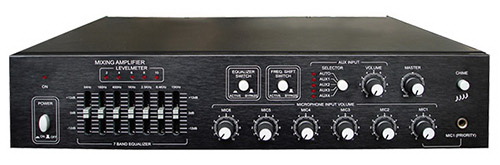

Mixer Amplifier
Mixer Amplifier
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

    ◆ Convenient and reliable operation mode, integrated functional design.
    ◆ 4 line inputs, one line output, 6 Microphone input (Balanced with 24V phantom power supply).
    ◆ 4 audio source channels can be selected automatically by their priority level.
    ◆ With mute function, esay to override the mornal playing.
    ◆ With microphone frequency shift function.
    ◆ With built-in chime generator, and then chime output volume is adjustable.
    ◆ The volume of microphones and the audio source channels can be controlled independently, but with a master controller to controll the total volume.
    ◆ 7-band equalizer,and the adjustment is conveninet. The active/bypass option for equalizer is provided to select the output mode.
    ◆ With 100V and 70V rated voltage output, P1 output.

  • Specification:

Model PB-6906 PB-6912 PB-6925 PB-6835
Rated output power 60W 120W 250W 350W
Output voltage adjust rate Less than 3dB, from off-load to full load
Input sensitivity Microphone: 2.5mV(±0.5mV) (unbalance input)
Microphone: 2.5mV(±0.5mV) (balance input)
Wiring: 250mV(±50mV)
Frequency response 50Hz-20KHz(±3dB)
Total harmonic distortion Less than 0.5% (1kHz, normal work condition)
S/N ratio (A weighted) Microphone: Greater than 75dB
Wiring: Greater than 85dB
7-band equalizer 64Hz: ±12dB(±2dB)
160Hz: ±12dB(±2dB)
400Hz: ±12dB(±2dB)
1kHz: ±12dB(±2dB)
2.5kHz: ±12dB(±2dB)
6.4kHz: ±12dB(±2dB)
15kHz: ±12dB(±2dB)
Protection function DC, overload, short-circuit
Mute function Microphone 1 and chime input covering other inputs
Phantom power DC24V
Frequency 0-5Hz higher than the input signal frequency
Rating power supply AC220-240V / 50-60Hz
Power comsumption 120W 250W 500W 650W
Net weight (Kg) 10.2 12 14.8 16
Gross weight (Kg) 12 13.8 16.5 17.8
Dimensions (mm) 430x368x88

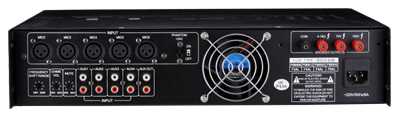

back view
