◆ 6 channel integrated mixer/zone amplifier
◆ Combined with MP3/Tuner/USB/SD card inputs
◆ Individual channel volume selection and output level indication
◆ 4 MIC inputs with volume selector and 3 AUX line inputs
◆ 1 line output for additional mixer/amplifier
◆ 4-6Ω single speaker output, 6 channel 100V output
◆ 2 levels priority muting function: MIC 1>chime
◆ Treble and bass volume control separately
◆ LED digital tube displaying volume, playing status, programme number and etc.
◆ 5 LED meter for monitoring volume output in each zone
◆ Output short circuit protection and caution
|

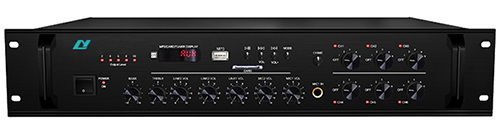

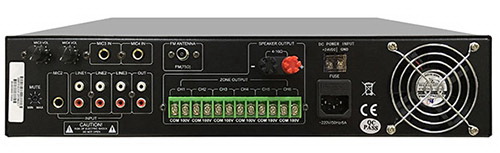

Model: |
PM-210U |
PM-310U |
PM-610U |
PM-1010U |
|
Output Power: |
60W |
120W |
250W |
350W |
|
Output Regulation: |
≤3dB from off-load to full load |
|
Speaker Output: |
4-16Ω single output and 6 channel 100V output |
|
Input: |
MIC: ≤ 3mV (unbalanced) |
|
Line: ≤ 300mV (unbalanced) |
|
Frequency Response: |
80Hz-16KHz (±3dB) |
|
Distortion: |
≤ 1% at 1KHz |
|
S/N: |
MIC: ≥74dB |
|
Tone: |
Bass: ±10dB at 100Hz |
|
Treble: ±10dB at 10KHz |
|
Protection: |
DC voltage; overload; short-circuit |
|
Muting Function: |
MIC 1 overrides other signal inputs |
|
Power Requirements: |
AC220-240V/50-60Hz |
|
Power Consumption: |
120W |
250W |
500W |
650W |
|
Gross Weight: |
11.7Kg |
13.5Kg |
16Kg |
17Kg |
|
Net Weight: |
10Kg |
11.5Kg |
14Kg |
15Kg |
|
Dimensions(mm): |
418x88x338(mm) |
