Product ID: DA-4060/DA-4125/DA-4250

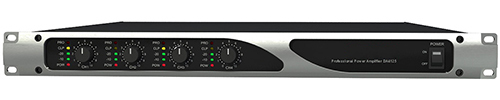

4 Channel Class D Digital Amplifier
4 Channel Class D Digital Amplifier
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

◆ Multiple channels in 19” standard rack cabinet
◆ 70V/100V power output optional
◆ Full digital with 4*60W / 4*125W / 4*250W high efficiency
◆ With priority input function and 100V input
◆ 1 U slim design, space and cost saving

◆ With standby function for power saving

  • Specification

    Model DA-4060 DA-4125 DA-4250
    Channel 4 4 4
    Rated power per channel 60W 125W 250W
    Rated output power 70V/100V 70V/100V 70V/100V
    Input sensitivity 775mVRMS(0dBV/balanced input);
    100VRMS (100V unbalanced input
    S/N ratio >80dB
    Input impedance 60K Ohms (balanced), 20K Ohms (priority), 100K Ohms (100V unbalanced)
    Frequency response 80Hz-15kHz (±3dB)
    T.H.D. <0.3 % (1kHz)
    Power consumption 300W 600W 1200W
    Power requirement AC180-260V/50-60Hz DC24V(rated power -3dB)
    Net weight (Kg) 7.4 7.7 8.0
    Gross weight (Kg) 8.8 9.0 9.3
