Product detail

Categories » Public Address System » Audio Matrix » 8x8 Digital Audio Matrix

 Checkout
Product ID: M-808
8x8 Digital Audio Matrix
8x8 Digital Audio Matrix
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description:

Complete PA system solution for multi-zone, multi-functional venues like entertainment place, large-scale hotel, sports center, shopping mall, airport, etc.

◆ 7" touch screen
◆ 8 channel balanced audio input, 8 channel balanced audio output
◆ Each channel with individual EQ control, support remote panel control, includeing audio selection, audio input and volume control
◆ Support 4 remote paging microphone, 2 local MIC with phantom power supply
◆ Build-in MP3 player (internal or external audio) and FM tuner
◆ Build-in one-touch alarm, chime input, fire alarm input, 8 dry contract inputs and one dry contact output
◆ Build-in TEL input module, with password management, support TEL paging to all zones
◆ Support monitroing function, can monitor each individual zone separately
◆ Support remote PC control and Android pad control within the same LAN network
◆ Support AC Power input and DC 24V input
◆ Timing playing function

  • Specification:

 Model  M-808
Line1-8 input voltage 1V
 Input sensitivity MIC1, 2 10mV
Line1-8 250mV
EMC 250mV
Line1-8 output voltage 1V
Response Frequency MIC input & output 80Hz~10KHz (±3dB)
Line input & output 20Hz~20KHz (±3dB)
Radio frequency band 86-108 MHz
Max. output noise <3mV
Output distortion <1% @1KHz
Machine size 484mm×375mm×132mm
Packing size 540mm×510mm×195mm
Power supply 230V/50Hz/DC 24V
Net weight 10Kg
Gross weight 13Kg

  • Connection diagram

back view

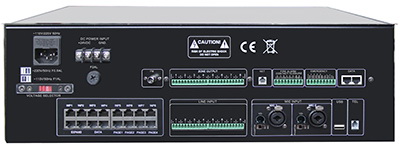

  • Rear panel view
back view
