Product detail

Categories » PA Amplifier » Mixer Amplifier » Single Zone Mixer Amplifier

 Checkout
Product ID: ED-35/ED-65

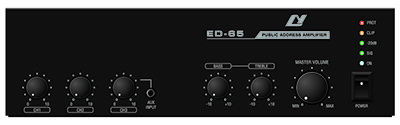

Desktop Amplifier
Desktop Amplifier
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description:

◆ Small-sized designed desktop amplifier
◆ 3 MIC input, 2 AUX input. MIC1 (XLR jack) with priority muting function
◆ 70V/100V/4Ω/8Ω output
◆ Telephone paging function (Euro block)
◆ 3 channel input individual volume control, treble & bass & master volume control
◆ With power, signal, -20dB, limiter and protect LED indicators

  • Specification:

 Model  ED-35  ED-65
 Rated output power  35W  65W
 Output / Impedance  100V / 285Ω
 70V / 140Ω
 16.8V / 8Ω
 11.8V / 4Ω
 100V / 154Ω
 70V / 75Ω
 22.8V / 8Ω
 16.1V / 4Ω
 Input sensitivity  MIC: -54dB to -10dB Variable /  20KΩ balanced
 Line: -34dB to +10dB Variable /  10KΩ unbalanced
 Tel-paging:-15dB / 600Ωbalanced
 Frequencey response  80Hz-18KHz
 T.H.D.  <0.5%
 S/N ratio  >80dB
 Tone control effect  100Hz, 10KHz±10dB
 Power supply  AC100~240V, 50/60Hz
 Protection  Overheat, overload
 Net weight  3.2Kg  3.6Kg
 Product dimension (WxDxH)  270x230x76mm

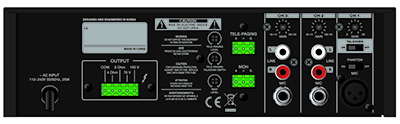

back view


Product Reviews

No Reviews For This Product.

Click to review this product

Desktop Amplifier with MP3 Record Player/FM Tuner/Bluetooth
Product ID: ED-35M/ED-65M

  • Rated output power: 35W/65W
  • Combined with MP3 record player, digital FM tuner and bluetooth 2.1
  • 3 MIC input, 2 AUX input, MIC1 with priority muting function
  • Small size design: 270x230x76mm (WxDxH)
