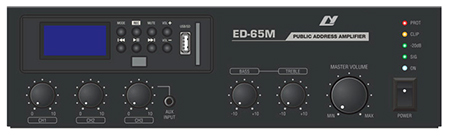

Product ID: ED-35M/ED-65M
Desktop Amplifier with MP3 Record Player/FM Tuner/Bluetooth
Desktop Amplifier with MP3 Record Player/FM Tuner/Bluetooth
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description:

◆ Combined with MP3 record player, digital FM tuner and bluetooth 2.1
◆ Small-sized designed desktop amplifier
◆ 3 MIC input, 2 AUX input. MIC1 (XLR jack) with priority muting function
◆ 70V/100V/4Ω/8Ω output
◆ Telephone paging function (Euro block)
◆ 3 channel input individual volume control, treble & bass & master volume control
◆ With power, signal, -20dB, limiter and protect LED indicators

  • Specification:

 Model  ED-35M  ED-65M
 Rated output power  35W  65W
 Output / Impedance  100V / 285Ω
 70V / 140Ω
 16.8V / 8Ω
 11.8V / 4Ω
 100V / 154Ω
 70V / 75Ω
 22.8V / 8Ω
 16.1V / 4Ω
 Input sensitivity  MIC: -54dB to -10dB Variable /  20KΩ balanced
 Line: -34dB to +10dB Variable /  10KΩ unbalanced
 Tel-paging:-15dB / 600Ω balanced
 Music on hole: 0dB / 600Ω balanced
 Frequencey response  80Hz-18KHz
 T.H.D.  <0.5%
 S/N ratio  >81dB
 Tone control effect  100Hz, 10KHz±10dB
 Power supply  AC110~240V, 50/60Hz
 Protection  Overheat, overload
 Net weight  3.2Kg  3.6Kg
 Product dimension (WxDxH)  270x230x76mm
Media player
Frequency range (FM) 87.5~108MHz
Channel step (FM) 50KHz
Sensitivity (FM) 2 uV at 30dB S/N
S/N ratio FM: >60dB
MP3: >80dB
Audio codec MPEG 1/2/5 layer 2/3 decoding (8KHz-48KHz)
WMA V4, V7, V8, V9(L1, L2) decoding  (8KHz-48KHz)
MP3/WMA compatible media MP3 USB memory sticks up to 16GB (FAT32)

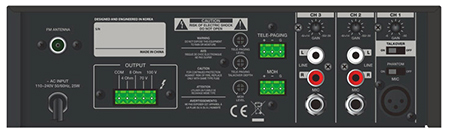

back view


Product Reviews

No Reviews For This Product.

Click to review this product

Desktop Amplifier
Product ID: ED-35/ED-65

  • Rated output power: 35W/65W
  • 3 MIC input, 2 AUX input, MIC1 with priority muting function
  • Telephone paging function (Euro block)
  • Music on hold fuction (Euro block)
  • Small size design: 270x230x76mm (WxDxH)
