Product detail

Categories » Public Address System » Paging Microphone

 Checkout
Product ID: EM-4

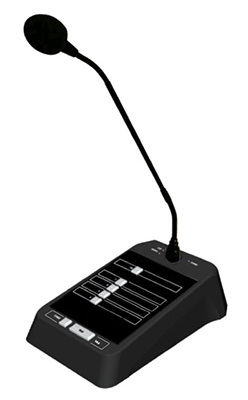

4 Zone Remote Paging Microphone (for EA-8148/EA-8224/EA-8412 & EF-804)
4 Zone Remote Paging Microphone (for EA-8148/EA-8224/EA-8412 & EF-804)
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

    ◆ Zone selector switch, all call & individual & group call
    ◆ Volume level control
    ◆ Talk & chime switch
    ◆ Volume level control
    ◆ Zone lock switch
    ◆ RJ45 connection with amplifiers
    ◆ Can work with
        EA-8148/EA-8224/EA-8412
        EF-804
    ◆ LED indicator: Power; Signal; Clip

  • Specification

    Model EM-4
    Rated output level/Impedance 0dB/600Ω balanced
    Input sensitivity/Impedance -60dB±3dB/600Ω balanced
    Frequency response (-1dB) 45Hz-15KHz
    T.H.D. <0.1%
    Signal to noise ratio >90dB
    Number of zones 4 zone
    Net weight 0.9Kg
    Dimension (WxHxD) 140x60x205mm (microphone base)

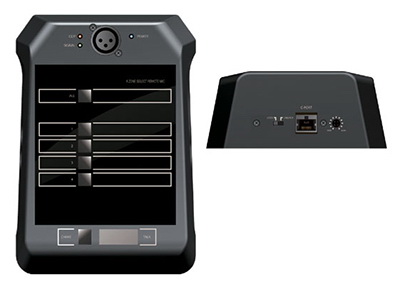

back view


Product Reviews

No Reviews For This Product.

Click to review this product

8x1/2/4 Matrix Mixer Amplifier with Paging
Product ID: EA-8148/EA-8224/EA-8412

  • Rated output power: 480Wx1ch; 240Wx2ch; 120Wx4ch
  • 4 MIC input, 4 line input, each input with output zone selector switch
  • 1/2/4 Channel output with 2 tone control and mute switch
  • With remote paging MIC input (RJ45 interface)
4 Channel Pre Amplifier with Paging
Product ID: EF-804

  • 4 Channel line output for amplifiers
  • 4 MIC input, 4 line input, each input with output zone selector switch
  • 1/2/4 Channel output with 2 tone control and mute switch
  • With remote paging MIC input (RJ45 interface)
1 Channel Pre Amplifier with Paging
Product ID: EF-81

  • 1 Channel line output for amplifiers
  • 2 Channel MIC/Line input, 6 Channel line input, each input with individual volume adjustment
  • Output with 2 tone control and mute switch
  • With remote paging MIC input (RJ45 interface)
2 Channel Pre Amplifier with Paging
Product ID: EF-82

  • 2 Channel line output for amplifiers
  • 2 Channel MIC/Line input, 6 Channel line input, each input with individual volume adjustment
  • Output with 2 tone control and mute switch
  • With remote paging MIC input (RJ45 interface)
