Product detail

Categories » Public Address System » Paging Microphone

 Checkout
Product ID: EM-5

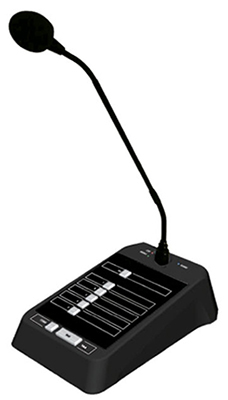

5 Zone Remote Paging Microphone (for ED-120/ED-240/ED-360/ED-480L/ED-600L)
5 Zone Remote Paging Microphone (for ED-120/ED-240/ED-360/ED-480L/ED-600L)
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

    ◆ Zone selector switch, all call & individual & group call
    ◆ Volume level control
    ◆ Talk & chime switch
    ◆ Volume level control
    ◆ Zone lock switch
    ◆ RJ45 connection with amplifiers
    ◆ Can work with
        ED-120/ED-240/ED-360/ED-480L/ED-600L
        ED-120M/ED-240M/ED-360M/ED-480M/ED-600M
        ED-120C/ED-240C/ED-360C/ED-480C/ED-600C
    ◆ LED indicator: Power; Signal; Clip

  • Specification

    Model EM-5
    Rated output level/Impedance 0dB/600Ω balanced
    Input sensitivity/Impedance -60dB±3dB/600Ω balanced
    Frequency response (-1dB) 45Hz-15KHz
    T.H.D. <0.1%
    Signal to noise ratio >90dB
    Number of zones 5 zone
    Net weight 0.9Kg
    Dimension (WxHxD) 140x60x205mm (microphone base)

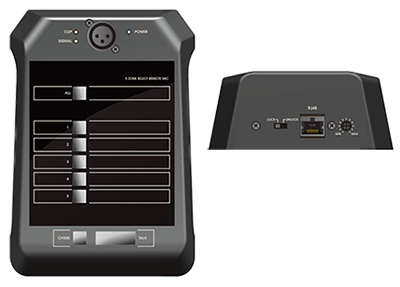

back view




Product Reviews
No Reviews For This Product.
Click to review this product
5 Zone Digital Mixer Amplifier with Remote Paging
Product ID: ED-120/ED-240/ED-360/ED-480L/ED-600L
5 Zone Digital Mixer Amplifier with Remote Paging

  • Rated output power: 120W/240W/360W/480W/600W
  • 6 MIC input, 3 AUX input, MIC1 with priority muting function, input individual volume control, treble & bass & master volume control
  • 5 zone 100V speaker output, 1 zone 4Ω speaker out (ED-120/ED-240/ED-360)
  • With remote paging MIC input (RJ45 interface)
5 Zone Digital Mixer Amplifier with CD/MP3/USB/FM Tuner/Remote Paging
Product ID: ED-120C/ED-240C/ED-360C/ED-480C/ED-600C
5 Zone Digital Mixer Amplifier with CD/MP3/USB/FM Tuner/Remote Paging

  • Rated output power: 120W/240W/360W/480W/600W
  • Combined with CD/MP3/USB/FM Tuner/Paging function
  • 6 MIC input, 3 AUX input, MIC1 with priority muting function, input individual volume control, treble & bass & master volume control
  • 5 zone 100V speaker output, 1 zone 4/8Ω speaker out (ED-120C/ED-240C/ED-360C)
  • With remote paging MIC input (RJ45 interface)
5 Zone Digital Mixer Amplifier with MP3 Record Player/Digital Tuner/Remote Paging
Product ID: ED-120M/ED-240M/ED-360M/ED-480M/ED-600M
5 Zone Digital Mixer Amplifier with MP3 Record Player/Digital Tuner/Remote Paging

  • Rated output power: 120W/240W/360W/480W/600W
  • Combined with MP3 Record Player/Digital Tuner/Paging
  • 6 MIC input, 3 AUX input, MIC1 with priority muting function, input individual volume control, treble & bass & master volume control
  • 5 zone 100V speaker output, 1 zone 4/8Ω speaker out (ED-120M/ED-240M/ED-360M)
  • With remote paging MIC input (RJ45 interface)
