Product detail

Categories » Conference System » Economical Conference System » Economical Conference System Main Unit

 Checkout
Product ID: H-3000
Ecnomical Conference System
Ecnomical Conference System
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

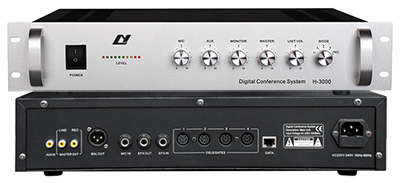

  • H-3000 Conference System Main Unit

    ◆ Designed accordance to ISO and IEC914 standards.
    ◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 200 units microphone with extension power unit.
    ◆ Equipped with four groups of 8P-DIN interface for system connecting.
    ◆ Build-in monitor loudspeaker.
    ◆ System support 1/2/3/5/Free mode.
    ◆ Support wideo camera auto-track with video processor H-8008.
    ◆ Connection:
    1 pc 13m main cable with 8 PIN plug;
    8 PIN socket for system connection.

  • Technical Parameter

    Item Parameter
    Power Supply AC110V~240V / 50Hz~60Hz
    Consumption Rating 500W
    T.H.D. <0.05%
    S/N >70dB
    Frequency Response 100Hz-18KHz
    Color Black, front panel silver
    Net Weight 9.3Kg
    Audio Output RCAx4, 6.33mmx1
    Audio Input Φ6.3x2
    System Connection 8-PIN DINx4
    Dimension 480x360x85mm
    Installation 19 inch frame

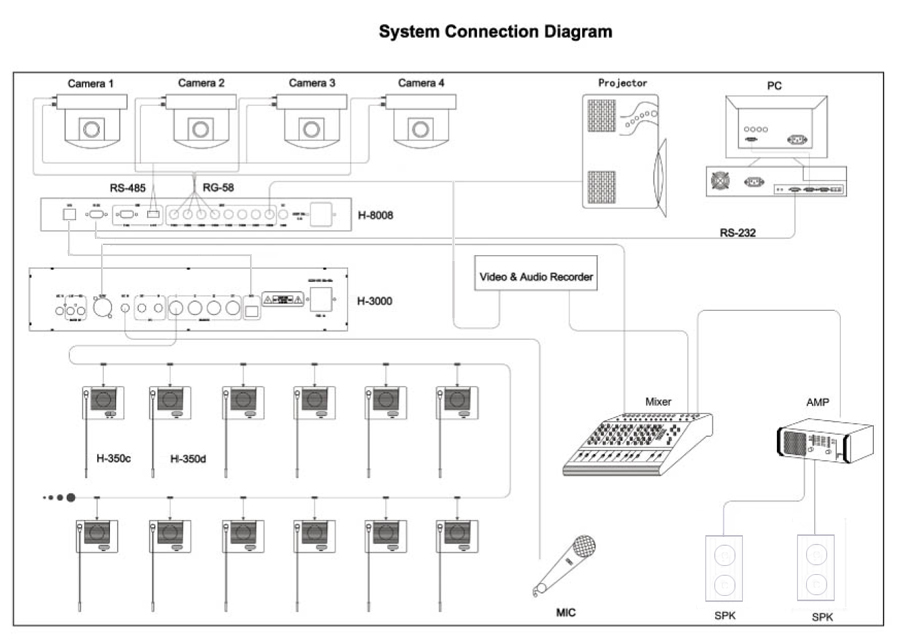

  • System Connection Diagram
    System Connection Diagram



  • H-3000.pdf




Product Reviews

No Reviews For This Product.

Click to review this product

Conference System Microphone
Product ID: H-350C/H-350D

  • Support discuss
  • Support video camera auto-track (with video processor H-8008)
  • Build-in speaker
  • Can work with conference system main unit H-3000
