Product ID: H-7300
Full Function Digital Conference System
Full Function Digital Conference System
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • H-7300 Digital Conference System Main Unit

    ◆ Designed accordance to ISO and IEC914 standards
    ◆ Main unit can support 60 units delegate and chairman micophone, it could be extend to support 250 units microphone with extension power unit
    ◆ Equipped with four groups of 8P-DIN interface for system connecting
    ◆ With the port for telephone interface input, telephone meeting is available with telephone coincidence
    ◆ Built-in monitor loudspeaker
    ◆ Main unit has following features when work without computer
    1) LCD display the working mode on the front panel
    2) Support many conference work mode: free, FIFO(1-9 microphone unit), limit(1-9 microphone unit)
    ◆ Main unit has following features when work with computer and other equipments:
    1) Manage the meeting with software, support double screen display
    2) Voting function (yes,no abstain)
    3) Electing function (single-ballot and multiple-ballot)
    4) Audience response ( 100, 75, 50, 25, 0)
    5) Video camera auto-track function
    6) System can support discuss model: free mode, FIFO mode(1-9 microphone unit), Limit mode (1-9 microphone unit)
    ◆ Connection:
    1) 1 pcs 13m main cable with 8 PIN plugs
    2) 8 PIN socket for system coonection

  • Technical Parameter

    Item Parameter
    Power Supply AC110V/240V 50Hz/60Hz
    Consumption Rating 450W
    T.H.D. <0.05%
    S/N >75dB
    Frequency Response 100Hz-18KHz
    Color Grey
    Net Weight 11.5Kg
    Audio Input RCAx1, Φ6.35x1
    Audio Output RCAx2, XLRx1
    Output Impedance 47KΩ
    Video Input BNCx4 75Ω
    Video Output BNCx1 75Ω
    Control Type RS-232
    System Connection 8-PIN DINx4
    Dimension 480x360x85mm
    Installation 19 inch frame

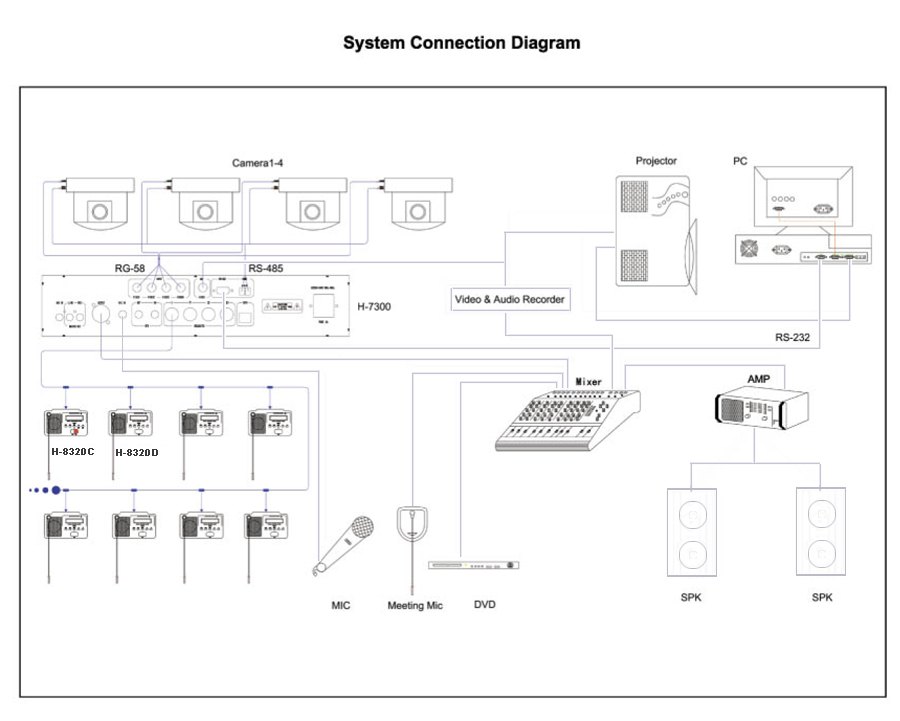

  • System Connection Diagram
    System Connection Diagram

    Achieve voting and video camera atuo-track function without adding other equipments
