Product detail

Categories » Conference System » Digital Conference System » Digital Conference System Main Unit

 Checkout
Product ID: H-7000
Digital Conference System
Digital Conference System
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

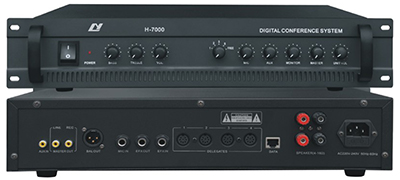

  • H-7000 Digital Conference System Main Unit

    ◆ Designed accordance to ISO and IEC914 standards.
    ◆ Main unit can support 60 units delegate and chairman microphone, it could be entend to support 250 unit microphone with extension power unit.
    ◆ Equipped with four groups of 8P-DIN interface for system connecting.
    ◆ With port for telephone interface unit, telephone meeting is available with telephone coincidence.
    ◆ Build-in monitor loudspeaker.
    ◆ Build-in power amplifier (2X50W RMS 4-16 Ohm), which can support external speaker directly
    ◆ System support 1/2/3/5/Free discuss mode.
    ◆ Support video camera auto-track with video processor H-8008.
    ◆ Support voting with voting processor H-8000.
    ◆ Connection:
    1 pc 13m main cable with 8 PIN plug.
    8 PIN socket for system connection.

  • Technical Parameter

    Item Parameter
    Power Supply AC110V/240V 50Hz/60Hz
    Consumption Rating 450W
    T.H.D. <0.05%
    S/N >75dB
    Frequency Response 100Hz-18KHz
    Color Grey
    Net Weight 12.7Kg
    Audio Input RCAx1, Φ6.35x1
    Audio Output RCAx2, XLRx1
    Output Impedance 47KΩ
    Data Communication RJ45x1
    System Connection 8-PIN DINx4
    Dimension 488x360x84mm (19"/2U)
    Installation 19 inch frame

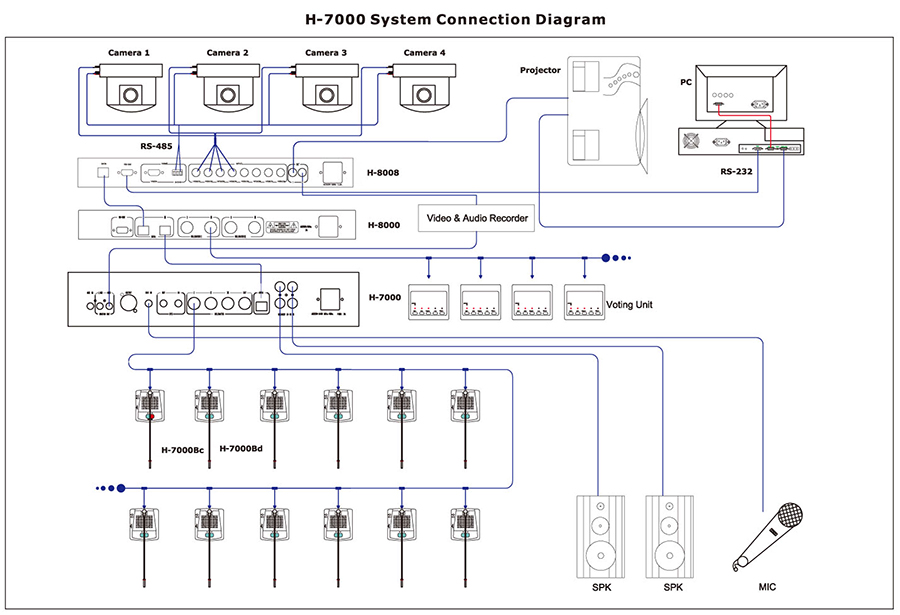

  • System Connection Diagram

    connection diagram




Product Reviews

No Reviews For This Product.

Click to review this product

Digital Conference System Microphone
Product ID: H-8200C/H-8200D

  • Support discuss, video camera auto-track function
  • Build-in inner speaker
Digital Conference System Microphone
Product ID: H-8320C/H-8320D

  • Support discuss, video camera auto-track & voting function
  • Built-in speaker
Digital Conference System Microphone
Product ID: H-3170C/H-3170D

  • Support discuss, video camera auto-track function
  • Build-in inner speaker & LCD
Digital Conference System Microphone
Product ID: H-7000BC/H-7000BD

  • Support discuss, video camera auto-track function
  • Build-in inner speaker
Digital Conference System Microphone
Product ID: H-7100C/H-7100D

  • Support discuss, video camera auto-track, voting
  • Built-in speaker
  • IC card / key press sign in option
Digital Conference System Microphone
Product ID: H-7110C/H-7110D

  • Support discuss, video camera auto-track, voting
  • Built-in speaker & LCD
Digital Conference System Microphone
Product ID: H-7200C/H-7200D

  • Support discuss, video camera auto-track, voting
  • Built-in speaker
  • Key press sign in option
Digital Conference System Microphone
Product ID: H-7500C/H-7500D

  • Support discuss, video camera auto-track function
  • Build-in inner speaker
Digital Conference System Microphone
Product ID: H-7600C/H-7600D

  • Support discuss, video camera auto-track
  • Built-in speaker
Digital Conference System Microphone
Product ID: H-7800C/H-7800D

  • Support discuss, video camera auto-track and voting
  • Built-in speaker & LCD
  • IC card / key press sign in option
Digital Conference System Microphone
Product ID: H-8310C/H-8310D

  • Support discuss, video camera auto-track
  • Built-in speaker
Digital Conference System Microphone
Product ID: H-8400C/H-8400D

  • Support discuss, video camera auto-track function
  • Build-in inner speaker & LCD
