Product ID: H-8000
Wired Voting System
Wired Voting System
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Voting Processor H-8000 Description:

    The central processor provides power to the vote unit and collects the voting data. The processor has two-group 8P-DIN port for system connection. Each processor can connect 64 vote units. The system can support 4096 vote unit by processor series connection. This voting system is suitable for the Peoples's Congress, Government, enterprises, ects. The system is easy to install and operate.

    ◆ Building-in voting CPU.
    ◆ Support 150 voting units, could connect more than 500 units via externsion
    ◆ In combination with the corresponding software modules, multiform voting can be implemented:
    1) Voting function (yes, no, abstain)
    2) Electing funtion (singel-ballot and multiple-ballot)
    3) Scoring (100, 75, 50, 25, 0)
    ◆ Count results automatically within 1 secound after ballot
    ◆ Support IC card singn in, key press sign in
    ◆ The processor can communicate with the equipments by RS232 interface

  • Technical Parameter

    Item Parameter
    Power Supply AC110V~240V/50Hz~60Hz
    Consumption Rating 100W
    Control Type RS232
    Color Black
    System Connection 8-PIN DINx4
    Data Communication RJ45x2
    Dimension 480x240x45mm
    Installation 19 Inch frame
    Net Weight 2.7Kg


    H-8000AH-8000B
    H-8000A / H-8000B



  • Voting Unit H-8000A/H-8000B

    ◆ Descern the identity
    Each vote unit is furnished with a personal IC card for voting (The IC card No. should be the same as the vote unit No.), or the all vote unit use the same kind IC card, it means the delegate can sign in by IC card with any vote units.

    ◆ Sign in
    The delegate sign in by IC card after taking a seat, the system provides IC card ID checking. Only when IC card is well inserted and the indicator lamp “ATTEND” on the vote unit is bright, it could work if system is equipped with IC card (IC card sign in or key press sign in is option).

    ◆ Voting
    There are three buttons on the vote unit: yes/abstain/no. Each button has the corresponding indicator lamp. After voting starts, delegate can press the corresponding button according to their willing. The delegate can re-vote before the voting finishing if they want to revise their vote; the voting results are subject to the button pressing at the last time.

    ◆ Electing
    There are five buttons on the vote unit:: candidate 1/2/3/4/5. Each button has the corresponding indicator lamp. After election starts, delegate can press the corresponding button according to their willing. The delegate can re-elect before the election finishing if they want to revise their elect; the election results are subject to the button pressing at the last time.

    ◆ Audience response
    To mark a score for something or someone: 0/25/50/75/100.


  • Technical Parameter


    Item Parameter
    Power Supply Powered by voting processor
    Consumption Rating <10mW
    T.H.D. <0.05%
    Dimension (LxWxH) 0.25Kg/0.445Kg
    Net Weight 177x120x30mm, 117x110x24mm

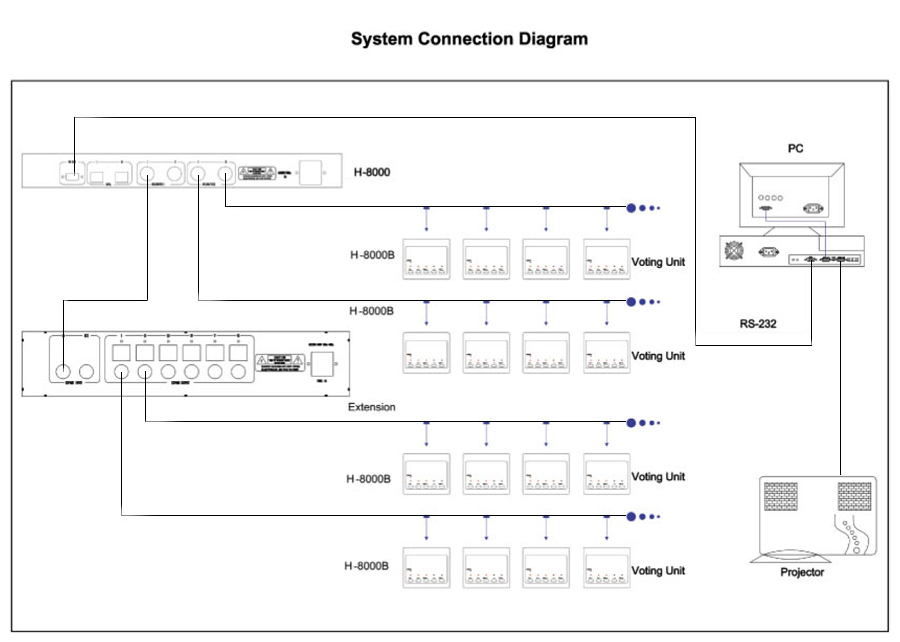

  • System Connection Diagram


    System Connection Diagram
