Home » Conference System » Voting System

 Checkout
Product ID: H-WB8800
Wireless Voting System
Wireless Voting System
  • Description
  • Picture
  • Datasheet

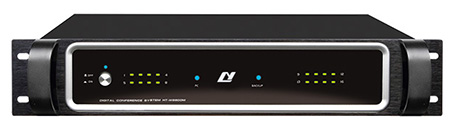

  • H-WB8800M Wireless Voting Processor

    ◆ Built-in voting CPU
    ◆ Support 250 voting units, could connect more than 500 units via extension
    ◆ In combination with the corresponding software modules, multiform voting can be implemented:
    1) Voting function ( yes, no, abstain)
    2) Electing function ( single-ballot and multiple-ballot)
    3) Scoring (100, 75, 50, 25, 0)
    ◆ Count results automatically within 1 second after ballot
    ◆ The processor can communicate with the equipments by RS232 interface

  • Technical Parameter

    Item Parameter
    Power Supply AC110V~240V 50Hz~60Hz
    Consumption Rating 4W
    Control Type RS232
    Color Black
    Net Weight 2.43Kg
    Output Impedance 50Ω
    Dimension (LxWxH) 480x240x45mm
    Installation 19 Inch frame

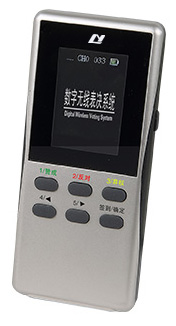

  • H-WD8800 Wireless Voting Unit
    H-WD8800 Wireless Voting Unit

    ◆ FHSS: 64 selectable channels
    ◆ Working enviroment ( temperature): -20°C+ 50°C
    ◆ The number for consecutive for pressing: 1000000 times
    ◆ Telecommunication ways: wireless telecommunication, confidentiality, agreement, multiple proofreading
    ◆ Graphic LCD bilingual display
    ◆ Sensitivity: -121dBm
    ◆ Real-time battery level display
    ◆ Low battery deep alarm
    ◆ Transmitting power consumption: <10mw
    ◆ The time cycle of sending and receiving in each single telecommunication: 60ms
    ◆ Packing: portable flight case
    ◆ Shutdown ways: shutdown by system software order, or automatic shutdown one hour later without any signal
    ◆ Signal display: signal level display while communication
    ◆ Sign-in: key press sign-in
    ◆ Voting ways: first key-press or last key-press

  • Technical Parameter

    Item Parameter
    Power Supply DC3.7V~4.2V
    Consumption Rating <10mW
    T.H.D. <0.05%
    Sensitivity 121dB
    Color Grey
    Net Weight 0.14Kg
    Dimension (LxWxH) 55x20x130mm

  • H-WA8800 Wireless Voting Antenna
    H-WA8800 Wireless Voting Antenna

    ◆ Use for connect wireless voting processor to transmit and receive singal

  • Technical Parameter

    Item Parameter
    Net Weight S(0.3Kg); M(0.8Kg); L(1.5Kg)
    Dimension S(120mm); M(940mm); L(2000mm)

  • Wireless Voting Charger Case H-WG8800

    Wireless Voting Charger Case H-WG8800


    Used for charging voting units
    High efficiency switch mode
    Input voltage: AC110V/240V, 50Hz~60Hz
    Charges 26pcs of voting unit per charging
    Dimension: 620x370x210mm

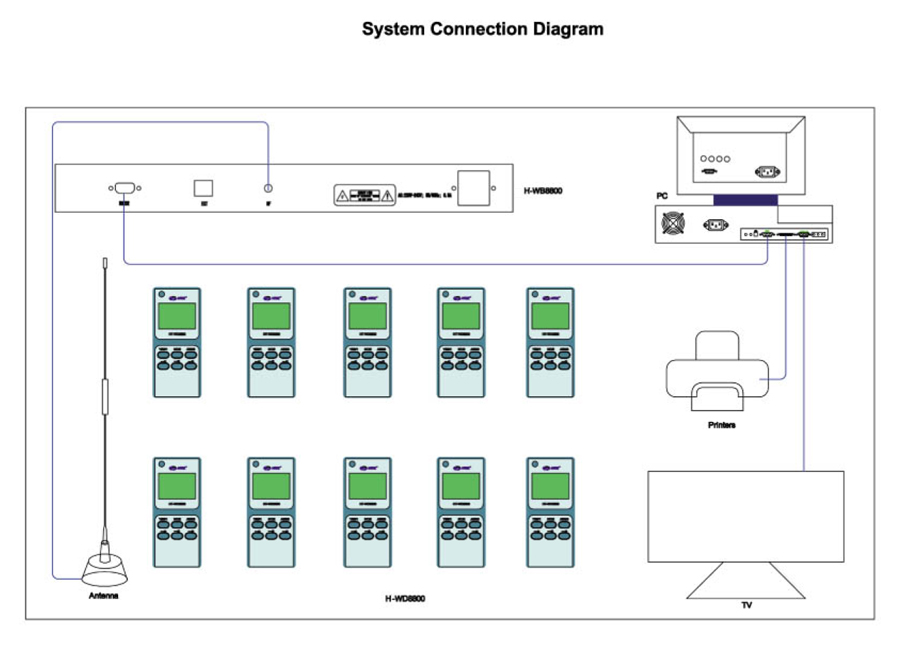

  • System Connection Diagram

    System Connection Diagram
