Product detail

Home » Professional Sound System » Professional Mixer

 Checkout
Product ID: H-F16/2

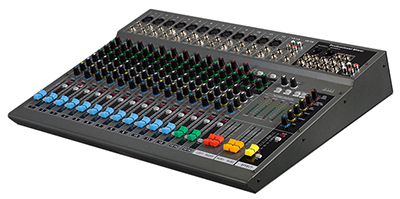

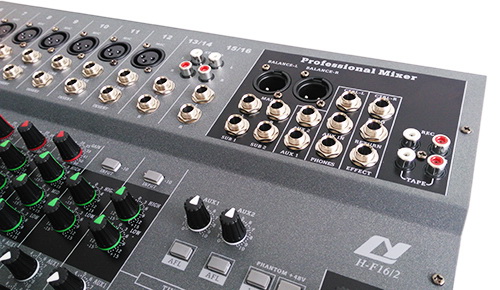

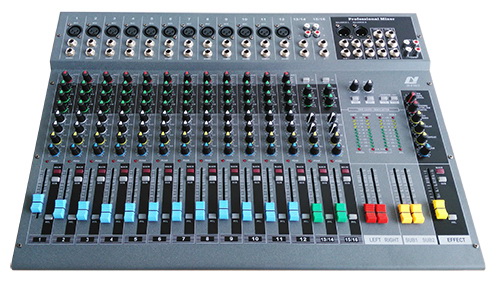

16 Channel Professional Mixer
16 Channel Professional Mixer
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description

◆ 12 channels Mono and 12 channels MIC input, 2 channel stereo input
◆ High-performance microphone preamplifiers with switchable phantom power
◆ 3-band channel EQ and high-pass filters
◆ Build-in channel compressors
◆ Smooth 60-millimeter faders & Illuminated channel on switches
◆ Bright meters for visual level monitoring

  • Specification

    Output power 45W
    Max output level 19dBM(1Hz, THD=0.5%)
    Phones output 40mW(1Hz, THD=0.5%, 200Ω)
    Input type XLRx4, RCAx4
    Frequency response 20Hz-20KHz
    S/N 71dB
    T.H.D. ≤0.05% (1KHz, 0.775V)
    EQ LOW: 80Hz±15dB
    MID: 2.5KHz±15dB
    HIGH: 12KHz±15dB
    Gain control Mono: -55dB~0dB
    Sereo: -10dB~0dB
    Power supply AC220V 50~60Hz
    Dimension(LxWxH) 560x400x90mm
    Net weight 7Kg




Product Reviews

No Reviews For This Product.

Click to review this product
