Product ID: HS-6813

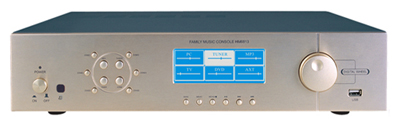

6 Zone Multi-room Music System
6 Zone Multi-room Music System
  • Description
  • Picture
  • Datasheet

  • Host HS-6813:

◆ Built-in MP3 player, FM & AM digital tuner.
◆ Support external USB port MP3 programme input (flash disk, portable harddisk, MP3 player).
◆ With DVD, PC, TV, AUX audio input interface, MP3 and radio audio outputs; all connections through RCA sockets.
◆ 6 independent stereo audio output channels connected to 6 zones; independent volume / tone control; optional audio sources input for each zone.
◆ Console panel control and remote control available.
◆ Timing control is available for 2 built-in audio sources and 4 external audio sources, up to 100 timing points can be programmed each day, and 7 days per week.
◆ 1 channel timing control power output (220V) is available for external audio source.

  • Specification:

Item

 Specification

 Zone Quantity  6 zones, 2 channels and a amplifier for each zone
 Zone Remote Communication Interface  RS-485, CAT-5 for wiring
 Input Sensitivity  250mV±25mV
 Input Resistance  >10kΩ
 Zone Output Power  20W/4Ω
 Frequency Response  20Hz-20kHz(±0.5dB)
 T.H.D  <0.2%, 1/3 rated output power at 1kHz
 Output Regulation  <3dB (from full-load to no-load)
 Tone Control  Treble: ±10dB/10kHz
 Bass: ±10dB/100Hz
 S/N  >76dB
 Power Supply  AC220V/50-60Hz
 Power Consumption  <200W
 Fuse  AC220V/F2A
 Dimensions  485×88×345mm
 Net Weight  10kg
 Dielectric Strength Test  3500V between each pole of the power supply and
housing/input/output terminal




  • Remote Control Pad HS-30R:

 remote control pad

◆ Easy-operation wired remote controll pad for HS-6813 Home Music Playing & Control Device
◆ Soft-touch operation, luxury design with LCD display
◆ Functions with control device including room audio source selection, volume & tone adjustment, MP3 programme lookup and radio control
◆ With presetting address code in each controlled room
◆ Up to 300 meters control distance from control device
◆ Remote control by infrared controller


  • Remote Control HS-21:
 remote control

◆ Soft-touch operation.
◆ With sound source selection, volume and tone control function.
◆ With AM/FM or mono/stereo switch function.
◆ With MP3 programme selection function.

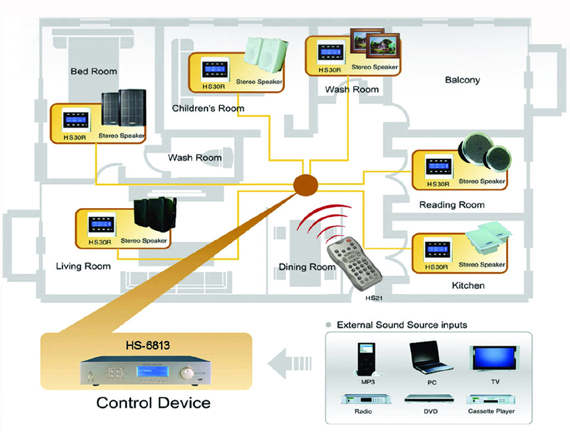

  • Connection Diagram:
 connection diagram

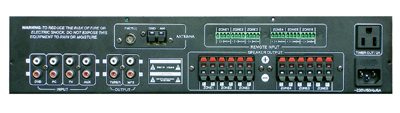

back view
