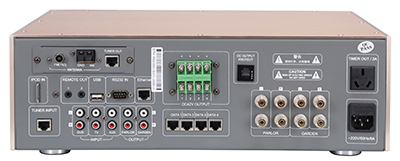

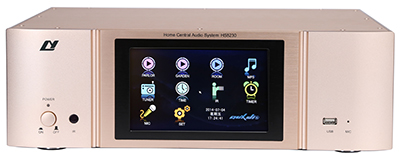

• Host HS-8230 Description:

◆ 7" TFT full touch screen
◆ Combined with MP3 Player, Tuner, Matrix, Zone director, timer, pre-amplifier and power amplifier
◆ Support MAX 50 zones indipendent output (include 2 big power output for parlor and garden, and 48 rooms)
◆ Host suport 6 sound sources: build-in MP3, Tuner, external DVD, iPod, TV, AUX;
  Room controller support build-in SD card, FM plus 6 sources from host
◆ Each room can talk to each order (1 to 1 or 1 to all)
◆ Digital transmission between host and room controller, supporting HI-FI output
◆ Room controller can be controlled by itself and host
◆ 4 RJ45 interface for remote control room controller, each RJ45 interface can link max 12 room controllers hand-in-hand
◆ RS-232 interface and LAN support connectiong to intelligent central control system
◆ Can be controlled by APP via Wifi

• Specification:

Item		Description
Number of room controllers connected		48 controllers
Number of zones		2 zone, each of which is provided with a 2-channel stereo power amplifier
Room controller interface		4×RJ45 interfaces, CAT-5 cable
Audio spec.	Line input Sensitivity	500mV(±25mV)
	Line input resistance	500mV(±25mV)
	Zone output power	4×80W/8Ω
	Frequency response	20Hz-20kHz(±0.5dB)
	T.H.D	<0.2% at 1kHz and 1/3 rated output power
	S/N ratio	≥80dB
DC output voltage		36V (±10%)
DC output power		≤320W
Input Power		AC220-240V/50-60Hz
Protection		AC220V/F6AL
Maximum Power Consumption		600W
Dimensions (mm)		(L×W×H) 430×340×132mm
Net weight (Kg)		16



• MP3 player:

Item	Description
Format supported	MP3, at bit rate of <320kbps
Compatible storage	Compatible with most mobile storages utilizing USB interface
Frequency response	20Hz-20kHz (±0.5dB)
T.H.D	<0.2%



• AM/FM tuner:

Item		Description
AM	Frequency range received	522-1620kHz
	Sensitivity	52dB μ
	S/N ratio	35dB
	Pass band	6KHz
	T.H.D	0.2%
FM	Frequency range received	87.0MHz-108.0MHz
	Sensitivity	18dB μ
	S/N ratio	75dB for mono, and 70dB for stereo
	Pass band	15KHz
	T.H.D	0.6%
	Stereo crosstalk	35dB



---

• Remote Control Pad HS-823R

◆ 3.2" TFT full touch screen, soft-touch operation
◆ 8 sound sources: build-in SD card and tuner, plus 6 sound sources from host
◆ Build-in MIC, talk to other rooms are available
◆ Search and display songs in MP3 player and SD card
◆ Build-in Hi-Fi digital power amplifier and DSP effect
◆ Remote control by infrared controller


---

• Remote Controller HS-818

◆ Soft-touch operation
◆ With sound source selection, volume and tone control function
◆ With AM/FM or mono/stereo switch function
◆ With MP3 programme selection function.
