Product ID: M-808R

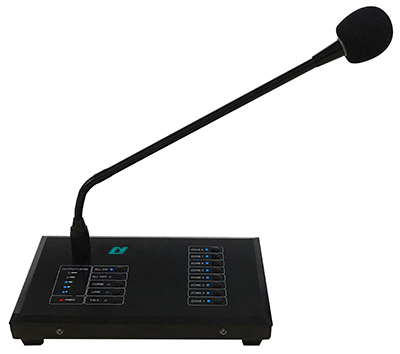

8 Zone Remote Paging Microphone
8 Zone Remote Paging Microphone
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

  • Description

    ◆ Support 8 zone paging
    ◆ Signal level LED indicator
    ◆ Built-in 2 chime signal
    ◆ MIC and chime volume adjustable
    ◆ Adopts D626 goose-neck microphone
    ◆ Adopts RJ45 interface for MIC connection

  • Technical parameter

    Model M-808R
    Input sensitivity MIC 45±5 mV
    Net prot (balanced) 2000±100 mV
    Net port output voltage (Balance) 2000±100 mV
    Chime rated output level ≤1000 mV
    Output control signal type RS485 + Analog audio signal(net port)、10P computer extension socket and priority dial
    MIC frequency response 100Hz~15kHz (±3dB)
    Noise <1.5mV
    Distortion <0.5% at 1KHz
    Power supply ~220V/50Hz
    Product size (L×W×H) 231.5mm×145.5mm×67.5mm
    Packing size (L×W×H) 282mm×200mm×264mm (1pc)
    Net weight 1.75Kg
    Gross weight 2.0Kg (1pc)

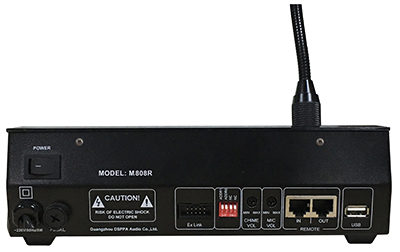

back view


Product Reviews

No Reviews For This Product.

Click to review this product

8x8 Digital Audio Matrix
Product ID: M-808

  • 8 input 8 output digital audio matrix (extend to 32 zones)
  • 4 remote paging station
  • Remote panel control for each zone
  • 1 EMC input & output
  • Build-in MP3 player, FM tuner
