Used for collecting occasion's monitoring, smoke detection and emergency signals.
When alarm signal is received, the IP Network Fire Alarm Terminal will send the signal to the server for forced insertion of the emergency broadcast sound.
◆ Based on TCP/IP protocal
◆ 32 Channel fire alarm signal input, 32-way independent control, support adjacent zone alarm
◆ Support short circuit and 5V-24V signal
◆ Alarm sound signal can be customized via management software
◆ Support DHCP/static IP, support LAN and WAN
◆ Control area can be extended by connecting more of this device to the network
◆ 1 U slim small size design
|

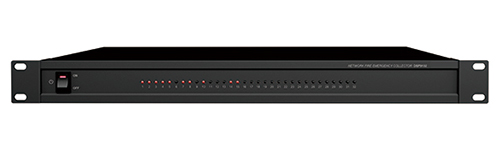

Model |
M-9102 |
|
Channels supported |
32 |
|
Input mode |
Short circuit, 12V~24V |
|
Indicator |
LED |
|
Protocal supported |
TCP/IP、UDP、ICMP、IGMP（Multicast） |
|
Trigger signal level |
5V-24V |
|
Protection |
AC fuse×1 |
|
Power supply |
~220-240V/50-60Hz |
|
Dimension |
44×430×213mm (H×W×D) |
|
Net weight |
2.3Kg |
