Product detail

Categories » PA Amplifier » Mixer Amplifier » Single Zone Mixer Amplifier

 Checkout
Product ID: PB-200P/PB-300P/PB-600P/PB-1000P

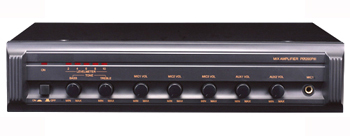

Mixer Amplifier
Mixer Amplifier
  • Description
  • Picture
  • Datasheet
  • Reviews

Description:

◆ 3 MIC inputs, MIC 1 with priority muting function
◆ 2 AUX inputs & 1 output line for additional mixer or amplifier
◆ Individual volume control for each MIC and line input
◆ Bass and treble volume control separately
◆ 5 unit LED level display
◆ Output short-circuit protection and alarm

  • Specification:

Model: PB-200P PB-300P PB-600P PB-1000P
Output Power: 60W 120W 250W 350W
Output Regulation: <3dB from off-load to full load
Speaker Output: balanced 4Ω, 100V, 70V
AUX Output: 600Ω more than 0.775V (0dBm)
Input: MIC 1, 2, 3/600Ω, 3.5mV unbalanced
AUX 1, 2/10KΩ, 300mV unbalanced
Frequency Response: 50Hz-20KHz (±3dB)
Distortion: Less than 0.8% at 1KHz, 1/3 rated power
S/N: MIC 1, 2, 3: 70dB
AUX 1, 2: 75dB
Tone: Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Protection: AC fuse; DC voltage; overload; short-circuit
Muting Function: MIC 1 overrides other signal inputs with 0~-3dB attenuation
Power Requirements: AC220-240V/50-60Hz
Power Consumption: 120W 250W 500W 650W
Gross Weight: 12.5Kg 13.5Kg 15.5Kg 16.7Kg
Net Weight: 10Kg 11Kg 13Kg 14Kg
Dimensions(mm): 418x88x338

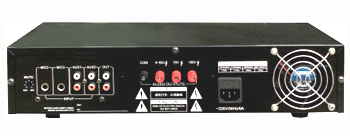

 rear view
