Product ID: PB-3060/PB-3120/PB-3240/PB-3360/PB-3480

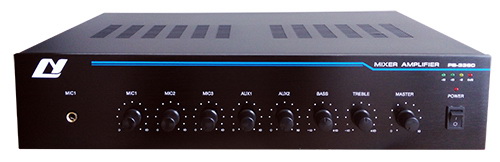

Mixer Amplifier
Mixer Amplifier
  • Description
  • Picture
  • Datasheet
  • Reviews

  • Description:

◆ 2 AUX input, 3 MIC input, MIC1 with muting function
◆ Individual volume control
◆ Output: 70V, 100V, 4~16Ω
◆ LED indicator
◆ Short circuit protection & alarm

  • Specification:

 Model  PB-3060  PB-3120  PB-3240  PB-3360  PB-3480
 Rated output power  60W  120W  240W  360W  480W
 Max output power  90W  180W  360W  540W  720W
 Output  70V, 100V, 4~16Ω
 AUX output level  600Ω, 1V (0dBV)
 Input level  MIC 1,2,3: 600Ω, 6mV (unbalanced)
 AUX 1,2: 10KΩ, 250mV (unbalanced)
 Frequencey response  100Hz-16KHz (±3dB)
 T.H.D.  <0.1% at 1KHz, 1/3 rated output power
 S/N ratio  MIC 1,2,3: ≥66dB
 AUX 1,2: ≥70dB
 Tone control effect  Bass:±10dB at 100Hz
 Treble: ±10dB at 10KHz
 Power consumption  90W  180W  360W  720W  960W
 Protection  AC fuse, DC voltage, Overload, Short circuit
 Muting function  MIC1 overrides other input signals at 0~30dB
 Power supply  AC220~230V/50Hz
 Product dimension (WxDxH)  430x260x88mm  430x388x88mm
 Net Weight  6.0Kg  8.0Kg  10.0Kg  12.6Kg  16.3Kg

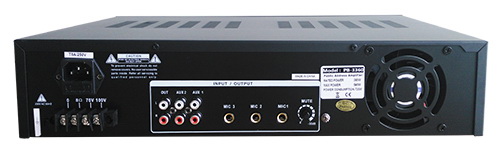

back view
