Product ID: PM-8070/PM-8130/PM-8260/PM-8360/PM-8500
Mixer Amplifier with MP3/FM Tuner
Mixer Amplifier with MP3/FM Tuner
  • Description
  • Picture
  • Datasheet

  • Description:

◆ Combined with MP3 player and FM tuner
◆ 2 AUX input, 3 MIC input, MIC1 with muting function; 1 AUX out for link
◆ Individual/Master volume control for all inputs, BASS and TREBLE tone control
◆ Output: 70V, 100V, 4~16Ω
◆ LED indicator
◆ Short circuit, overload, high temperature protection

  • Specification:

 Model  PM-8070  PM-8130  PM-8260  PM-8360  PM-8500
 Rated output power  60W  120W  240W  350W  500W
 Output Low impedance  4-16Ω
70V  70Ω  38Ω  19Ω  14Ω  10Ω
100V  143Ω  77Ω  39Ω  28Ω  20Ω
 AUX output level  0.775V (0dBV)
 Input level MIC 1,2,3  600Ω, 10-15mV (unbalanced)
AUX 1,2  10KΩ, 200-470mV (unbalanced)
 Frequencey response  60Hz-15KHz (±3dB)
 T.H.D.  <0.5% at 1KHz, 1/3 rated output power
 S/N ratio MIC 1,2,3  ≥72dB
AUX 1,2  ≥85dB
 Tone Bass  ±10dB at 100Hz
Treble  ±10dB at 12KHz
 Muting function  MIC1 overrides other input signals at 0~30dB
 Controls  Volume, tone/treble, mute, power
 Protection  AC fuse, Overload, Short circuit, high temperature
 FUSE×4A  FUSE×4A  FUSE×6A  FUSE×6A  FUSE×8A
 Cooling fan  DC 12V FAN
 LED indicator  AC: POWER, level: 2、4、6、8、10
 Power supply  AC220~240V, 50-60Hz
 Power consumption  95W  175W  350W  485W  675W
 Power cord  (3×0.75 mm2)×1.5M (standard)
 Product dimension  89(H)×483(W)×366(D) mm
 Packing dimension  185(H)×520(W)×435(D) mm
 Net weight  10.5Kg  11.5Kg  13.8Kg  14.5Kg  15.5Kg
 Packing weight  11.80kg  13.10kg  15.40kg  15.80kg  17.20kg

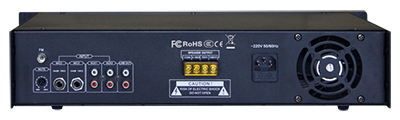

back view
