Product ID: H-6600
Digital Conference System
Digital Conference System
  • Description
  • Picture
  • Datasheet
  • Reviews

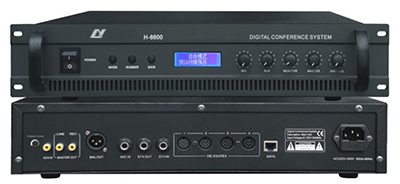

  • H-6600 Digital Conference System Main Unit

    ◆ Designed accordance to ISO and IEC914 standards.
    ◆ Main unit can support 60 units delegate and chairman microphone, it could be entend to support 250 unit microphone with extension power unit.
    ◆ Equipped with four groups of 8P-DIN interface for system connecting.
    ◆ With port for telephone interface unit, telephone meeting is available with telephone coincidence.
    ◆ Build-in monitor loudspeaker.
    ◆ System support discuss mode: Free mode, FIFO mode (1-9 microphone unit), Limit mode (1-9 microphone unit).
    ◆ System working mode can display on LCD.
    ◆ Support video camera auto-track with video processor H-8008.
    ◆ Support voting with voting processor H-8000.
    ◆ Connection:
    1 pc 13m main cable with 8 PIN plug.
    8 PIN socket for system connection.

  • Technical Parameter

    Item Parameter
    Power Supply AC110V/240V 50Hz/60Hz
    Consumption Rating 450W
    T.H.D. <0.05%
    S/N >75dB
    Frequency Response 100Hz-18KHz
    Color Grey
    Net Weight 8.0Kg
    Audio Input RCAx1, Φ6.35x1
    Audio Output RCAx1, XLRx1
    Output Impedance 47KΩ
    Data Communication RJ45x1
    System Connection 8-PIN DINx4
    Dimension 480x360x85mm
    Installation 19 inch frame

  • H-8200C/H-8200D Chairman and Delegate Unit

    H-8200C/H-8200D Chairman and Delegate Unit
    ◆ Frequency Response: 40Hz-16KHz
    ◆ Sensitivity: -44dB±2dB
    ◆ Dimension: 130x160x50mm
    ◆ Length of gooseneck: 390mm
    ◆ Net weight: 0.8Kg
    ◆ Discuss & video
    ◆ Build-in speaker
    ◆ Chairman with priority button

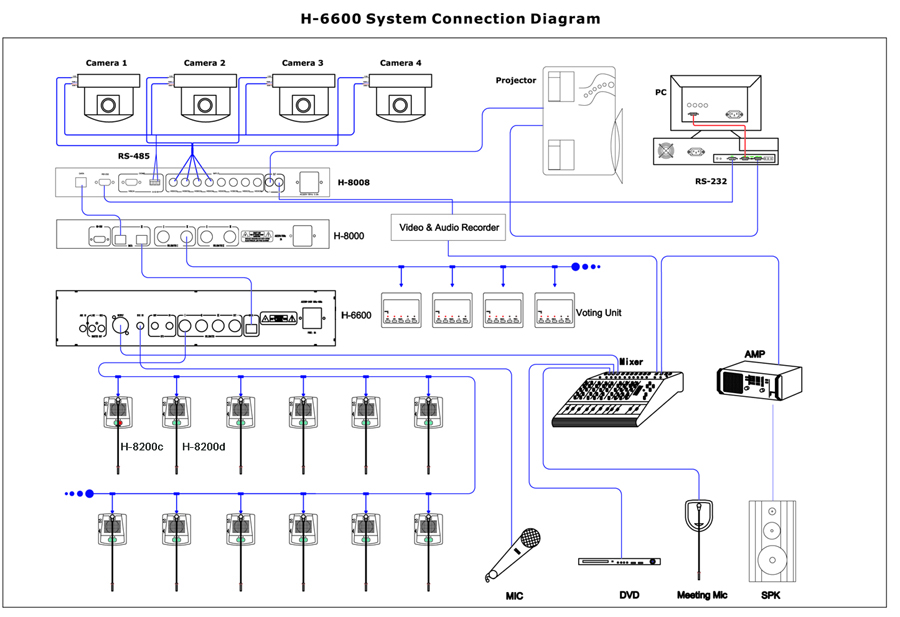

  • System Connection Diagram

    connection diagram
