Product ID: H-7000D
Ecnomical Conference System
Ecnomical Conference System
  • Description
  • Picture
  • Datasheet
  • Reviews
  • Related products

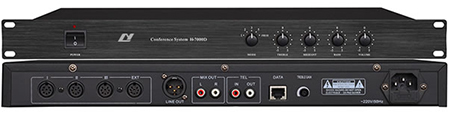

  • H-7000D Conference System Main Unit

    ◆ Designed accordance to ISO and IEC914 standards.
    ◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 units microphone with extension power unit.
    ◆ Equipped with four groups of 8 P-DIN interface for system connecting.
    ◆ With the port for telephone interface input, telephone meeting is available with telephone coincidence
    ◆ System support 1/2/3/5/Free mode
    ◆ Support video camera auto-track with video processor H-8008
    ◆ Suppport voting with voting processor H-8000
    ◆ Connection:
    1 pc 13m main cable with 8 PIN plug;
    8 PIN socket for system connection.

  • Technical Parameter

    Item Parameter
    Power Supply AC110V/240V 50Hz/60Hz
    Consumption Rating 115W
    T.H.D. <0.05%
    S/N >75dB
    Frequency Response 100Hz-18KHz
    Color Grey
    Net Weight 5Kg
    Audio Output RCAx2, XLRx1
    Data Communication RJ45x1
    System Connection 8-PIN DINx4
    Dimension 480x340x45mm
    Installation 19 inch frame

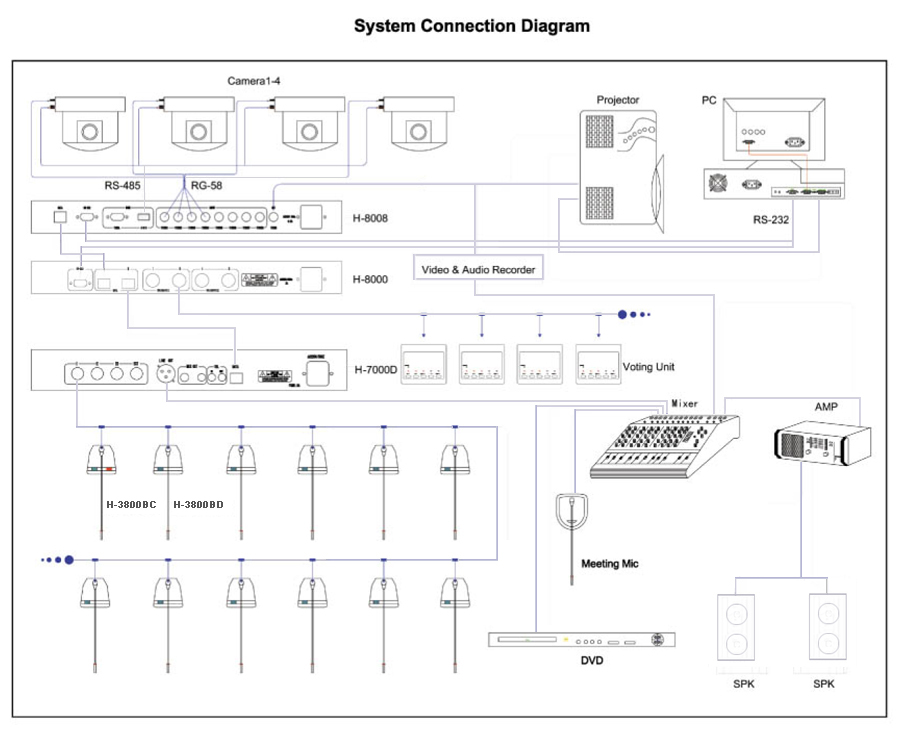

  • System Connection Diagram
    System Connection Diagram




Product Reviews

No Reviews For This Product.

Click to review this product

Conference System Microphone
Product ID: H-3100C/H-3100D

  • Support discuss
  • Support video camera auto-track (with video processor H-8008) & voting (with voting processor H-8000)
  • Can work with conference system main unit H-3300, H-7000D
Conference System Microphone
Product ID: H-3120c/H-3120d

  • Support discuss
  • Support video camera auto-track (with video processor H-8008) & voting (with voting processor H-8000)
  • Can work with conference system main unit H-3300, H-7000D
Conference System Microphone
Product ID: H-3300C/H-3300D

  • Support discuss, video camera auto-track (with video processor H-8008)
  • Can work with conference system main unit H-3300, H-7000D
Conference System Microphone
Product ID: H-3500C/H-3500D

  • Support discuss
  • Support video camera auto-track (with video processor H-8008)
  • Can work with conference system main unit H-3300, H-7000D
Conference System Microphone
Product ID: H-3600C/H-3600D

  • Support discuss, video camera auto-track (with video processor H-8008)
  • Can work with conference system main unit H-3300H-7000D
Conference System Microphone
Product ID: H-3800BC/H-3800BD

  • Support discuss, video camera auto-track (with video processor H-8008) & voting (with voting processor H-8000)
  • Can work with conference system main unit H-3300, H-7000D
Conference System Microphone
Product ID: H-3800C/H-3800D

  • Support discuss, video camera auto-track (with video processor H-8008)
  • Can work with conference system main unit H-3300, H-7000D
Conference System Microphone
Product ID: H-7000DC/H-7000DD

  • Support discuss, video camera auto-track (with video processor H-8008)
  • Can work with conference system main unit H-3300, H-7000D
